For covered multifamily dwelling units, electrical outlets and other usable controls generally need to be between 15 and 48 inches above the finished floor (AFF) under Fair Housing accessibility guidelines. Measure to the operable part of the device, not simply the electrical box.

Key limits to plan around:

• Standard accessible reach: 15 to 48 inches AFF
• Forward reach over a 20- to 25-inch-deep obstruction: 44 inches maximum
• Side reach over a cabinet up to 24 inches deep: 46 inches maximum
• Clear floor space: provide a 30-by-48-inch clear area at an accessible route so a resident can approach the outlet

Outlet height for multifamily units is not just a rough-in preference. A receptacle installed at 14 inches AFF or a switch at 48.5 inches can create an accessibility compliance issue after finished flooring, cabinets, and countertops are in place.

This guide explains where Fair Housing Act rules apply, how they differ from ADA and NEC requirements, and how property teams can prevent costly corrections before drywall and final inspection.

Key Accessibility Frameworks: FHA vs. ADA vs. NEC Standards

Navigating multi-unit residential development requires balancing several distinct code frameworks simultaneously. Electricians, general contractors, and developers often struggle with conflicting specifications when jumping between single-family homes and commercial multi-unit properties.

Under federal law, the Fair Housing Act (FHA) design guidelines—specifically Requirement 5 under Section 100.205(c)(3)(ii)—mandate that all light switches, electrical outlets, thermostats, and other environmental controls in covered multifamily dwellings be placed in accessible locations. Covered units include all ground-floor units in non-elevator buildings with four or more units, as well as all units in buildings with elevators.

To build a solid foundation on electrical safety alongside these accessibility rules, reviewing our guide on electrical code 101 understand the basics can help clarify how foundational requirements operate.

While the National Electrical Code (NEC) dictates the frequency of receptacles along wall spaces (such as the standard 6-foot/12-foot spacing rule in residential rooms) and mandates safety provisions like AFCI and GFCI protection, it does not explicitly define a minimum mounting height for standard wall receptacles. The NEC is primarily concerned with electrical safety and fire prevention rather than physical usability.

In contrast, accessibility standards such as ANSI A117.1 and the 2010 ADA Standards for Accessible Design focus on human dimensions, mobility equipment clearance, and reach ranges. Broad baseline criteria are also cataloged in the National Renewable Energy Laboratory multifamily specifications, showing how accessibility integrates into whole-building performance.

Covered vs. Exempt Electrical Outlets and Controls

Not every single plug inside an apartment must sit between 15 and 48 inches AFF. The Fair Housing Accessibility Guidelines recognize that certain plugs serve appliances that occupants rarely unplug or adjust.

• Covered Outlets: General-use convenience receptacles throughout living rooms, bedrooms, hallways, dining areas, and accessible bathroom wall spaces must satisfy accessible reach standards.
• Exempt Outlets: Dedicated receptacles serving specific fixed appliances are exempt from accessibility reach limits. This includes outlets tucked behind refrigerators, dedicated microwave circuits concealed inside cabinets, range hood connections, dishwasher plugs, and receptacles for clothes washers and dryers.
• Breaker Panels and Disconnects: Under NEC 404.8, circuit breaker handles and switches can be installed up to a maximum height of 6 feet 7 inches (79 inches) above the floor. However, Annex J of the NEC and ADA accessibility standards recommend placing breaker panels serving designated accessible units within accessible reach limits (18 to 48 inches AFF to the highest operable breaker) so that occupants using wheelchairs can reset a tripped circuit without assistance.

To make sure your installation accounts for all mandatory safety clearances alongside reach guidelines, consult the complete guide to electrical safety code requirements.

Standard Outlet Height for Multifamily Units and Reach Ranges

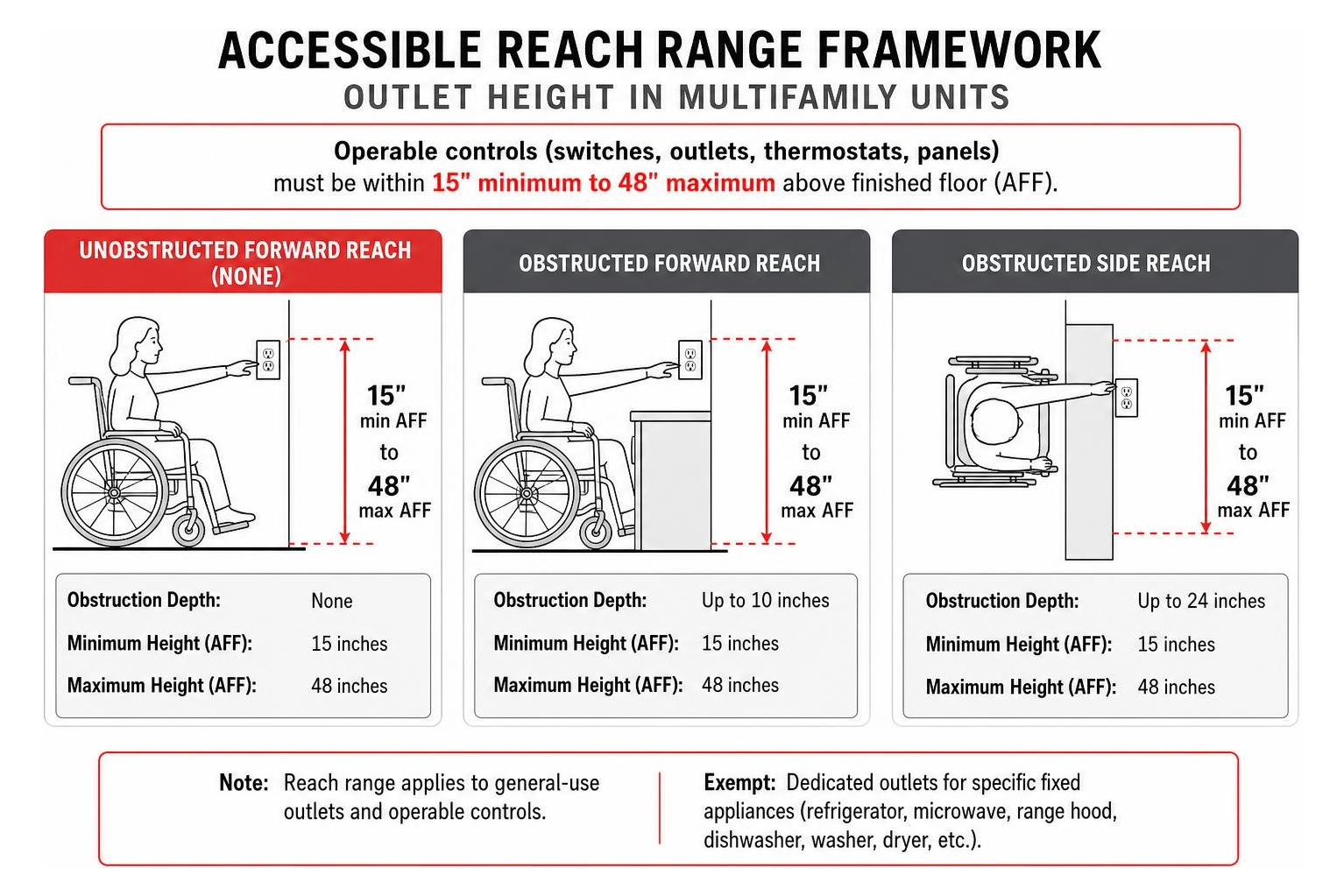

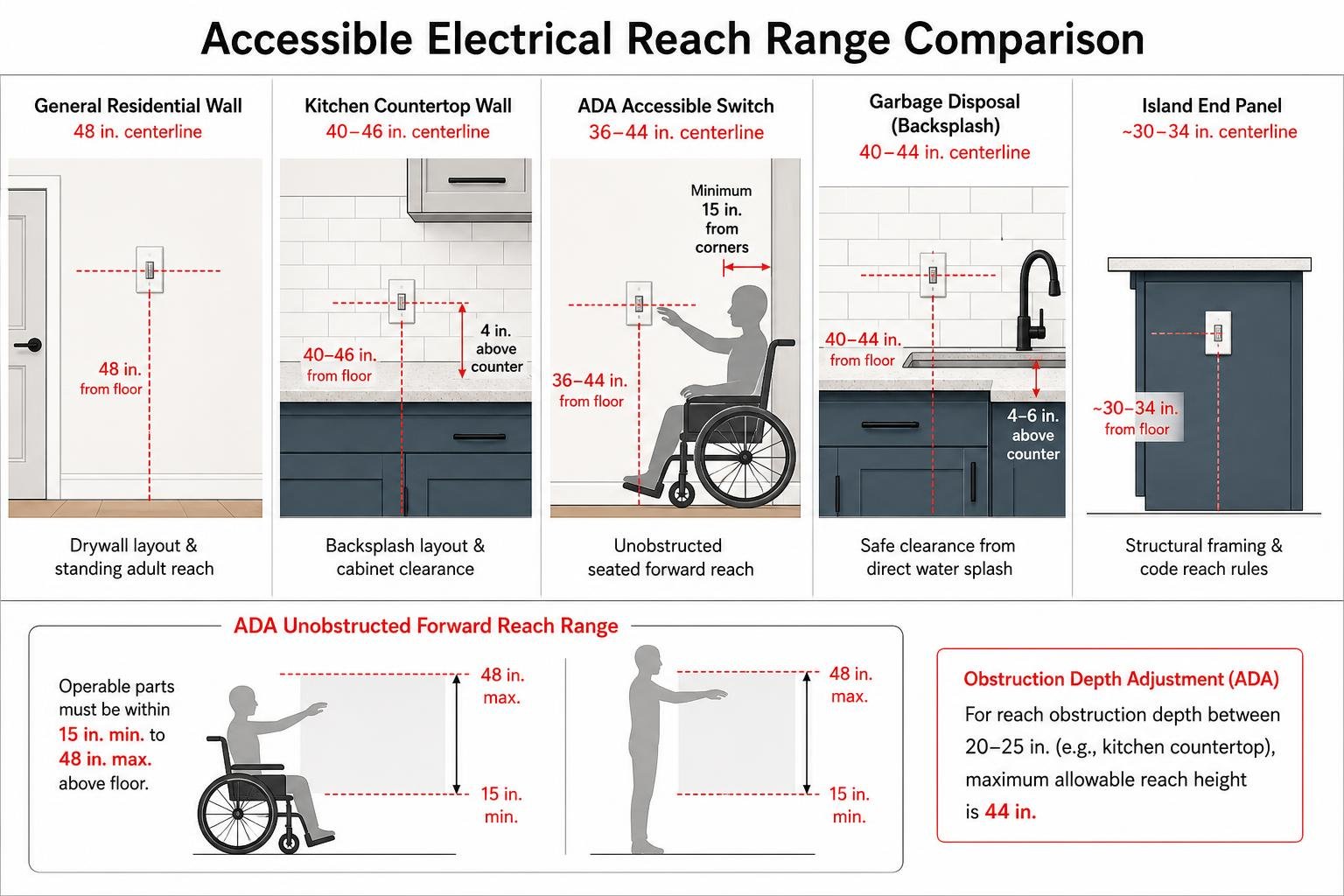

The fundamental reach range for operable controls under FHA guidelines and ANSI A117.1 spans from 15 inches minimum to 48 inches maximum above finished floor (AFF).

When an individual approaches a wall without any obstruction (such as a table, shelf, or base cabinet blocking their path), both forward and side reach allow controls within this 15-to-48-inch envelope. However, when an obstruction is introduced, the usable physical reach changes significantly.

Measuring Duplex Outlet Height for Multifamily Units Correctly

A frequent pitfall during electrical rough-in is measuring to the center or bottom of the metallic or plastic electrical box rather than the actual receptacle itself.

Federal enforcement agencies, including the Department of Housing and Urban Development (HUD) and the Department of Justice (DOJ), inspect the operable part of the device. For a standard vertical duplex receptacle:

1. The measurement must be taken from the top surface of the finished floor covering (tile, hardwood, vinyl plank, or carpet).
2. The tape measure must verify that the lowest receptacle socket (the bottom plug openings) sits at or above 15 inches AFF.
3. If an electrician sets the center of the rough-in box at 15 inches, the lower plug will sit roughly 13.5 to 14 inches above the subfloor. Once underlayment and finished flooring are laid, that bottom socket can end up under 13 inches AFF, resulting in a direct federal accessibility violation.

Required Clear Floor Space and Approach Paths

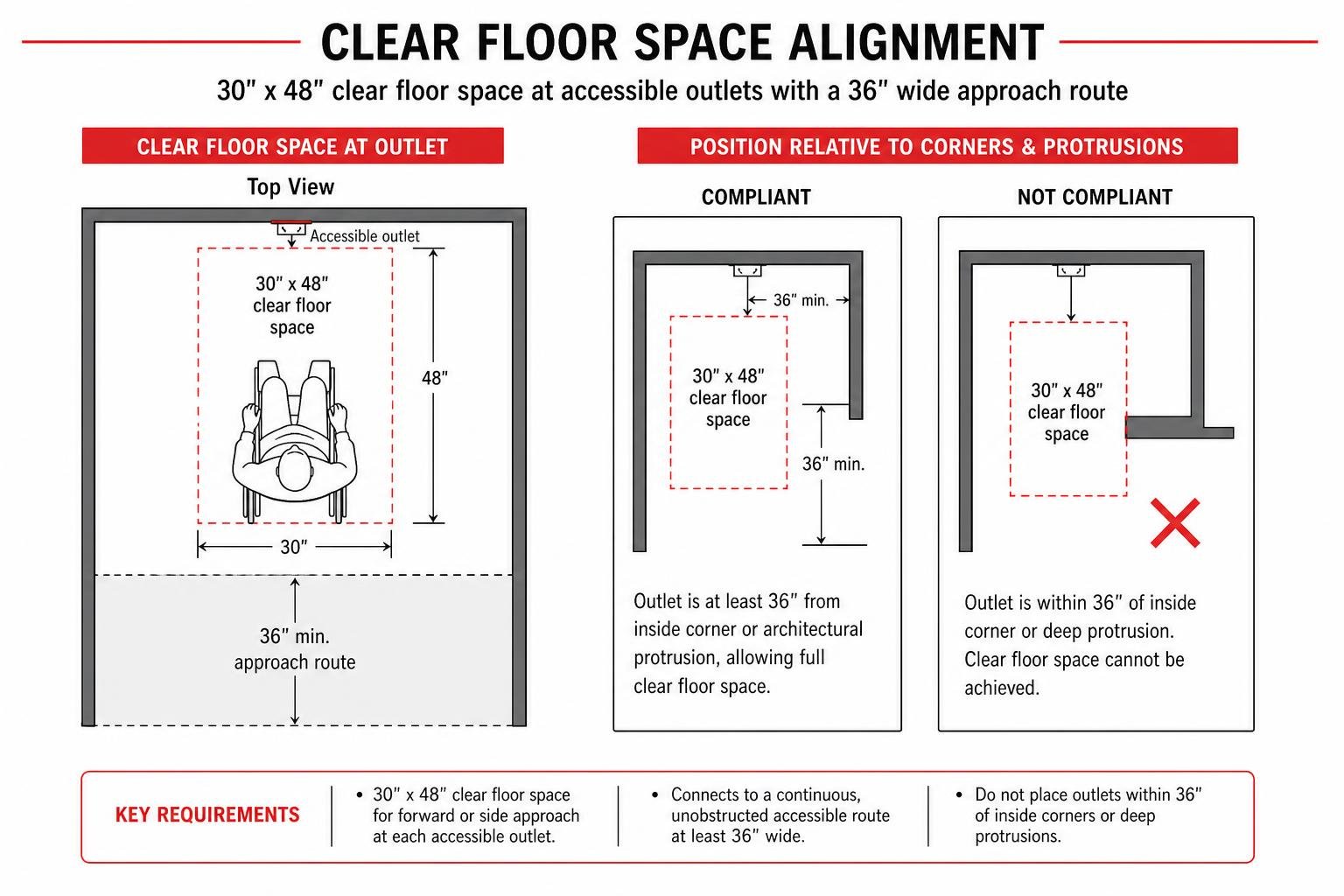

An accessible outlet cannot be tucked into an unreachable corner. The law requires a 30-inch by 48-inch clear floor space positioned for either a forward approach or a parallel (side) approach at each accessible control.

This clear floor space must connect directly to a continuous, unobstructed accessible route of at least 36 inches in width. These interior circulation dimensions coordinate closely with broader municipal building egress standards to ensure residents can navigate corridors and doorways easily.

If an outlet is installed within 36 inches of an inside corner or adjacent to a deep architectural protrusion, a person using a wheelchair may be unable to position their chair within the 30-by-48-inch zone, rendering the outlet non-compliant even if the vertical height is perfect.

Mounting Outlets Over Obstructions, Counters, and Cabinets

Kitchens, kitchenettes, laundry rooms, and wet bars present complex layout challenges because standard base cabinets form a 24-inch to 25.5-inch obstruction between the user and the back wall.

When an individual makes a parallel side approach over a standard base cabinet:

• Standard base cabinets are 24 inches deep with countertop overhangs extending up to 1.5 inches (25.5 inches total projection). HUD permits an industry tolerance of 0.5 inches for standard countertops, allowing up to a 25.5-inch overall reach depth from the wall.
• Over a cabinet depth up to 24 inches (or 25.5 inches with tolerance), the maximum side-reach height drops from 48 inches down to 46 inches AFF.
• If a forward reach over an obstruction between 20 and 25 inches deep is required (such as reaching over a shallow built-in desk or laundry counter), the maximum forward-reach height drops to 44 inches AFF.

For turnkey commercial and residential developments across Florida and the Southeast, our specialized multifamily electrical services ensure that all rough-in heights, panelboard placements, and kitchen rough-ins are designed to satisfy both safety and accessibility standards on the first pass.

Adjusting Outlet Height for Multifamily Units Around Obstructions and Countertops

In standard residential kitchens, countertops are set at 36 inches AFF, and backsplash receptacles are typically mounted centered at 42 to 44 inches AFF. This standard installation sits comfortably below the 46-inch maximum side-reach threshold.

However, issues arise in common-area amenities, leasing office clubhouses, and community kitchens. In public and common-use spaces covered by Title III of the ADA:

• Work surfaces and counters designed for accessible use must not exceed 34 inches AFF.
• Receptacles mounted over these accessible counters must remain within reachable limits (maximum 44 inches for forward reach or 46 inches for side reach), and the reach depth across the counter surface must not exceed 24 inches.
• Receptacles placed in tight inside corners above counters must be positioned at least 12 to 18 inches away from the corner wall so users do not have to stretch beyond compliant reach angles.

Common Electrical Height Violations and How to Avoid Them

Accessibility compliance audits by federal monitors or private accessibility consultants are rigorous. During federal compliance reviews, tolerances are extremely tight—a light switch installed at 48.5 inches AFF or a duplex convenience outlet whose lowest receptacle sits at 14.5 inches AFF is a taggable federal violation under the Fair Housing Act.

To avoid costly post-construction retrofits, project teams should familiarize themselves with common electrical code violations in florida and how to avoid them. Understanding how regional inspectors enforce standards is essential, and our overview of navigating electrical code compliance inspection rules and permits outlines how to keep documentation and field verifications organized.

The most frequent violations on multifamily job sites include:

1. Ignoring Finished Floor Thickness: Roughing in boxes at 15 inches above the raw concrete slab or OSB subfloor. Once a 0.75-inch hardwood floor or 0.5-inch tile with thinset is installed, the lower receptacle drops into illegal territory (under 15 inches).
2. Switch Box Creep: Setting switch boxes at 48 inches to the center of the box on bare framing. After drywall, trim rings, and switches are installed, the top toggle or paddle of the switch extends to 48.5 or 49 inches AFF.
3. Island and Peninsula Outlets: Installing island outlets too low on the side panel or positioning them underneath deep breakfast bar overhangs exceeding 6 inches, making them physically inaccessible.
4. Thermostat and Intercom Misplacement: Treating thermostats and environmental controls like standard commercial equipment and mounting them at 54 to 60 inches AFF rather than respecting the 48-inch accessible ceiling.

Construction Best Practices for Pre-Rough-In Planning

Preventing accessibility rework requires strict protocols established before rough-in begins:

• Build Custom Story Poles: Provide every rough-in crew with wooden story poles marked with dedicated lines for rough framing height, finished floor datum line, box centerlines, and maximum operable heights.
• Account for Floor Build-Ups: Always coordinate with the general contractor regarding specific floor finishes per unit type. For units receiving thick tile or floating acoustic underlayment, raise rough-in marks by 1 to 1.5 inches (e.g., setting box centers at 18 inches AFF).
• Adopt the 18-Inch Standard for Low Boxes: By standardizing non-countertop convenience outlets to 18 inches AFF to the center of the box, you provide a comfortable margin of error that easily clears the 15-inch minimum requirement regardless of flooring choice.
• Adopt the 44- to 46-Inch Standard for Switches: Mounting switch boxes so that the top edge does not exceed 46 inches ensures every switch, dimmer, and thermostat operable mechanism finishes well beneath the 48-inch cap.
• Conduct Pre-Drywall Quality Audits: Perform a laser-level or physical tape measure audit of every rough-in box across 100% of units prior to sheetrock installation. Moving a nail-on box on an open stud takes two minutes; cutting, patching, rewiring, and painting drywall after final inspection costs hundreds of dollars per unit.

Frequently Asked Questions About Multifamily Outlet Heights

Do all electrical outlets in a multifamily unit have to be accessible?

All general convenience outlets throughout living rooms, bedrooms, kitchens, and bathrooms in covered units must satisfy the 15-to-48-inch reach range and clear floor space rules. However, outlets dedicated to specific fixed appliances (such as behind refrigerators, ranges, dishwashers, and built-in microwaves) are exempt. Additionally, if an architectural feature makes a specific plug inaccessible, comparable accessible outlets must be provided within the same room along the accessible route.

How does finished flooring thickness affect outlet box rough-in height?

Finished flooring materials—such as tile, hardwood, luxury vinyl plank (LVP), and carpet padding—range from 0.25 inches to over 1 inch in thickness. All code reach measurements are calculated from the top surface of the finished floor covering (AFF), not the structural subfloor. Electrical crews must know the specific finished floor thickness for each room type and add that dimension to their rough-in framing layout to prevent sub-15-inch violations.

What is the maximum allowable height for breaker panels in apartment units?

Under NEC 404.8(A), the center of the grip of the operating handle of the highest circuit breaker or switch in its highest position cannot exceed 6 feet 7 inches (79 inches) above the floor or working platform. However, in designated accessible (ADA/Type A) units, federal accessibility guidelines and NEC Annex J recommend that all operable controls, including breaker switches, be located between 18 and 48 inches AFF to allow a resident using a wheelchair to operate the panel independently.

Conclusion

Getting outlet heights right in multifamily construction requires early trade coordination, precise measuring habits, and a complete understanding of the differences between the NEC, Fair Housing Act, and ADA requirements. A fraction of an inch can make the difference between a fully compliant property and a costly federal enforcement action.

At Performance Electrical Contracting Inc., we partner with developers, general contractors, and architects across Jacksonville, FL and the Southeast to deliver flawless electrical installations. Our pre-qualified, detail-oriented teams ensure that every rough-in, switch placement, and distribution system meets safety codes and accessibility mandates on time and on budget.

For additional technical details on control heights and switch alignments, explore our guide on standard light switch height requirements explained by code. Ready to ensure complete accessibility compliance on your next multifamily project? Reach out to our team today for expert electrical design and installation services.

If you are searching for auto electrical repair in Jacksonville, FL, you are likely dealing with a no-start vehicle, dimming lights, blown fuses, or unexplained battery drain. Start by checking the battery terminals for corrosion, testing battery voltage with a multimeter (a healthy battery reads around 12.6 volts at rest), and inspecting fuses visually for blown elements. If those basic checks do not reveal the problem, a qualified auto electrical technician can perform deeper diagnostics on the starting and charging system, parasitic draws, and electronic control modules. Those are automotive problems best handled by a dedicated auto repair facility.

Performance Electrical Contracting Inc. does not repair vehicles; our work focuses on electrical installation, maintenance, and repairs for commercial, multifamily, hospitality, infrastructure, and residential properties across Jacksonville and the Southeast.

The overlap is that many warning signs sound familiar in both settings. Flickering lights, nuisance trips, overheated connections, corrosion, and voltage drops can occur in vehicles, parking facilities, apartment communities, commercial buildings, and site infrastructure. Modern cars use dozens of electronic control units communicating over networks such as Controller Area Network (CAN bus); modern buildings also rely on interconnected lighting controls, access controls, fire alarm interfaces, HVAC equipment, EV charging stations, and power distribution gear.

Flickering Lights, Weak Cranks, and Starting Failures

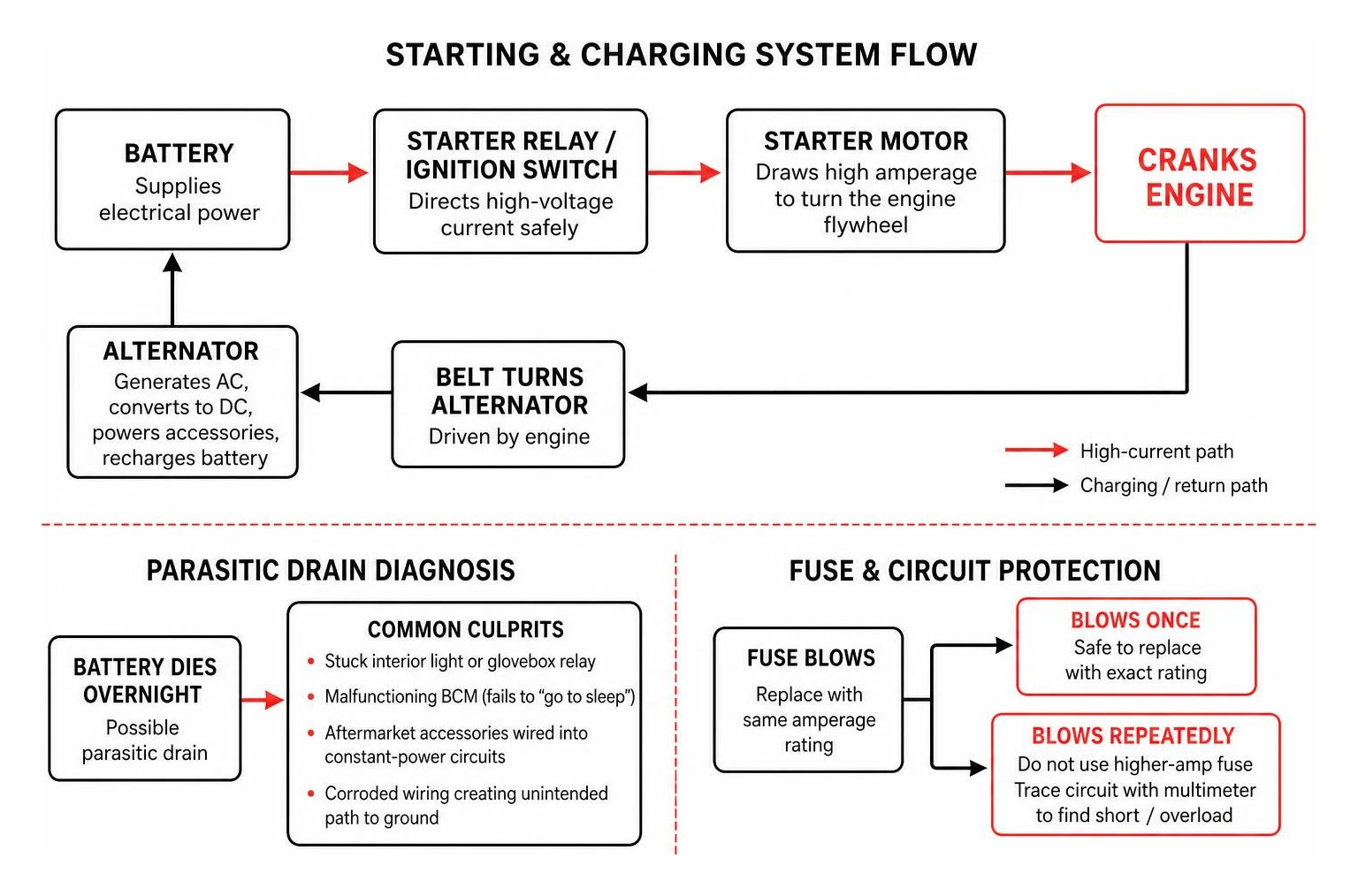

In a vehicle, starting and charging systems work in direct harmony:

• The Starter Motor: Draws high amperage from the battery to turn the engine flywheel.
• The Alternator: Generates alternating current, converts it to direct current via internal diodes, recharges the battery, and powers all onboard accessories while driving.
• The Ignition Switch and Starter Relay: Act as the gatekeepers directing high-voltage current safely.

In a building or property environment, similar symptoms often point to different equipment: undersized circuits, loose terminations, failing breakers, overloaded panels, damaged conductors, voltage imbalance, or corroded grounding and bonding connections. For example, lights that dim when large HVAC equipment starts may require a licensed electrical contractor to evaluate load capacity, connections, panel condition, and feeder performance.

When turning a vehicle key produces a rapid clicking sound, it may indicate the starter solenoid is engaging without enough voltage to turn the starter motor. When a building circuit repeatedly clicks, trips, hums, or shows heat discoloration, it should not be ignored or reset repeatedly. Electrical distribution problems require proper testing rather than guesswork.

Hidden Parasitic Drains and Blown Fuses

A battery that dies repeatedly overnight is often the victim of a parasitic drain. While every modern vehicle pulls a tiny standby current to maintain clock memory and alarm settings, a malfunctioning circuit can draw far more.

Common vehicle culprits of parasitic draw include:

• A stuck interior light or glovebox relay
• A malfunctioning Body Control Module (BCM) that fails to “go to sleep”
• Aftermarket accessories wired improperly into constant-power circuits
• Corroded wiring creating an unintended path to ground

On the property side, the equivalents may include site lighting controls that stay energized, malfunctioning contactors, damaged underground conductors, moisture intrusion in junction boxes, faulty parking lot lighting circuits, or equipment that draws current outside its intended operating schedule.

Fuses and breakers protect wiring from overheating. If a vehicle fuse blows once, replacing it with the exact amperage rating may be safe. If a building breaker trips repeatedly or a fuse continues to open, do not oversize the protection or keep resetting the circuit. That can hide a dangerous fault and increase the risk of damaged equipment, melted insulation, or fire. Continuous circuit overloads require professional circuit tracing with proper meters, documentation, and code-compliant repair methods.

Jacksonville Climate and Electrical System Reliability

Operating vehicles and properties in Northeast Florida presents unique environmental stressors. Between intense summer heat waves, high humidity, lightning activity, and salt-laden ocean breezes moving inland from Jacksonville Beach, electrical systems work under extreme conditions.

Extreme Heat and Coastal Humidity Impacts

Heat is one of the biggest enemies of electrical equipment. Under-hood vehicle temperatures can exceed 200°F during summer stop-and-go traffic, and exterior electrical equipment on commercial and multifamily properties can also experience severe heat exposure.

• Insulation Breakdown: Extreme heat dries out protective wire insulation, increasing the risk of cracking, brittleness, and moisture intrusion.
• Terminal Oxidation: High humidity accelerates chemical reactions between dissimilar metals, leading to green and white crusty corrosion on battery posts, lugs, terminations, disconnects, and ground connections.
• Ground Resistance: A corroded ground path creates elevated electrical resistance, which can cause nuisance faults, unreliable equipment operation, and safety concerns.

For Jacksonville property owners and managers, the same environmental conditions that shorten vehicle battery life can also affect parking lot lighting, exterior panels, marina-adjacent equipment, gate operators, pool equipment, EV chargers, generator connections, and building service components.

Battery Lifespan and Jump-Starting Safety Protocols

In colder northern climates, a car battery often lasts 4 to 6 years. In Jacksonville, intense summer heat accelerates internal electrolyte evaporation and grid corrosion, shortening battery life significantly. Drivers should test their car battery at 3 years and anticipate replacement by year 5.

For properties, battery-backed systems also deserve scheduled maintenance. Emergency lighting, fire alarm backup batteries, access control equipment, UPS units, gate operators, and generator starting batteries can all be affected by heat, age, corrosion, and poor charging conditions.

Safe Jump-Starting vs. Costly Mistakes

The single most common mistake made during a roadside jump-start is reversing the cable polarity by connecting positive red to negative black. Crossing leads can blow the alternator’s rectifier diodes, melt fusible links, and instantly destroy sensitive vehicle electronics.

When jumping a vehicle:

1. Connect the RED clamp to the dead battery’s POSITIVE (+) terminal.
2. Connect the other RED clamp to the booster vehicle’s POSITIVE (+) terminal.
3. Connect the BLACK clamp to the booster vehicle’s NEGATIVE (-) terminal.
4. Connect the final BLACK clamp to an unpainted metal engine ground on the dead vehicle, away from the battery.
5. Run the booster car for several minutes before attempting to crank the dead vehicle.

Tip for a locked steering wheel: If your ignition key will not turn after battery failure, apply firm pressure to the brake pedal and gently turn the steering wheel left and right while turning the key to release mechanical tension on the steering lock.

For building power issues, jump-start methods do not apply. If a panel, breaker, disconnect, transformer, generator connection, or exterior circuit is failing, a licensed electrical contractor should inspect the system before equipment is re-energized.

Core Services and Diagnostic Capabilities

Accurate electrical repair relies on methodical troubleshooting rather than guessing and swapping expensive parts. In an auto shop, that may mean testing the starting and charging loop. In a building, facility, or infrastructure setting, it means tracing power from the service equipment through panels, feeders, branch circuits, controls, and connected loads.

Professional electrical diagnostics may include:

• Digital Multi-Point Inspections: Evaluating panels, breakers, disconnects, grounding, bonding, conductor condition, and connected equipment.
• Thermal Imaging Cameras: Detecting hot spots in panels, switchgear, equipment cabinets, and wiring caused by loose connections or excessive electrical resistance.
• Circuit Tracing and Meter Testing: Confirming voltage, amperage, continuity, insulation condition, load behavior, and suspected fault locations.

Performance Electrical Contracting Inc. provides full-service electrical installation, maintenance, and repairs for commercial, multifamily, hospitality, infrastructure, and residential projects. Our role is not vehicle repair; it is keeping properties, facilities, and electrical infrastructure powered safely and reliably.

Advanced Electrical Work for Facilities, EV Charging, and Specialized Equipment

European and hybrid vehicles feature specialized electrical architectures requiring dedicated automotive diagnostic tools. Those systems belong with qualified auto technicians.

Property electrical systems also require specialized capability, especially when projects involve:

• Commercial and Multifamily Power Distribution: Panelboards, feeders, meter centers, lighting controls, and service upgrades.
• Hospitality and Infrastructure Electrical Systems: Coordinated installation and maintenance for high-use environments where downtime affects operations.
• EV Charging Infrastructure: Properly sized circuits, load calculations, code-compliant installation, equipment coordination, and safe integration with existing electrical service.
• Backup and Life-Safety Interfaces: Emergency lighting, generators, transfer equipment, access control power, and related electrical support systems.

Hybrid and electric vehicles may contain high-voltage battery packs, power inverters, DC-DC converters, and regenerative braking components. Similarly, commercial electrical equipment can involve high available fault current, energized distribution gear, and code-sensitive work that should only be handled by trained, properly equipped professionals.

Diagnostic Timelines and Cost Expectations

Simple automotive issues such as a battery replacement, starter swap, or straightforward alternator installation are frequently completed the same day by an auto repair facility. Building electrical timelines depend on the scope, access, documentation, permitting needs, parts availability, and whether the issue affects a single circuit or a larger distribution system.

Common repair considerations include:

• Diagnostic Fee / Labor Time: Basic diagnostics may involve testing, visual inspection, load checks, and circuit tracing to identify the source of a fault.
• Repair Scope: A tripped breaker, failed device, damaged conductor, corroded exterior box, or overloaded circuit each requires a different repair path.
• Equipment Availability: Panels, breakers, lighting controls, and specialty components may require matching listed equipment and manufacturer-compatible parts.
• Coordination Requirements: Commercial, multifamily, hospitality, and infrastructure work may require scheduling around occupants, operations, shutdown windows, and inspections.

Preventive Maintenance and Professional Repair Standards

Preventive electrical maintenance protects vehicles from unexpected failures, and the same principle applies to buildings and property infrastructure. Routine care catches degrading components before they cause outages, unsafe conditions, or costly emergency repairs.

Annual Electrical System Inspections

For vehicles, annual service often includes battery load testing, alternator output checks, belt inspection, and terminal cleaning. For properties, an annual electrical review should focus on the equipment that keeps operations, residents, guests, and tenants safe.

Include these essential checks during your annual service planning:

• Inspect Panels and Breakers: Look for heat discoloration, corrosion, missing labels, nuisance trips, and signs of overload.
• Test Critical Circuits: Confirm proper operation of lighting, exterior equipment, life-safety support circuits, access controls, and essential loads.
• Review Grounding and Bonding: Check for corrosion, loose connections, and conditions that may increase shock or equipment-failure risk.
• Clean and Protect Terminations: Remove oxidation where appropriate and use proper protective methods to reduce coastal salt-air exposure.
• Evaluate Exterior Equipment: Inspect parking lot lighting, disconnects, weatherproof covers, junction boxes, conduit, and site infrastructure exposed to rain, salt air, and heat.

Warranty Protections and Repair Standards

When selecting an electrical repair facility for a vehicle, drivers often look for ASE-certified technicians and high-grade parts. When selecting a contractor for a building or infrastructure project, property owners should prioritize licensed, insured, pre-qualified electrical professionals with documented experience in the relevant project type.

Reputable electrical contractors use listed equipment, manufacturer-approved components, code-compliant methods, and clear documentation. For commercial, multifamily, hospitality, infrastructure, and residential work, Performance Electrical Contracting Inc. focuses on partnership-driven service, on-time execution, on-budget delivery, and value-driven solutions backed by strong local experience.

Frequently Asked Questions About Electrical Repairs

Does Performance Electrical Contracting Inc. provide auto electrical repair?

No. Performance Electrical Contracting Inc. is not an auto repair shop and does not service vehicle starters, alternators, car batteries, ECUs, or automotive wiring harnesses. Our team provides electrical installation, maintenance, and repairs for commercial, multifamily, hospitality, infrastructure, and residential properties.

How long does a typical electrical diagnostic take?

For vehicles, a standard auto electrical diagnostic inspection often takes between 1 and 2 hours. Basic faults like dead battery cells or failing alternators are usually identified quickly, while intermittent issues may require extended circuit tracing.

For properties, timing depends on the system involved. A single failed device or tripped circuit may be evaluated quickly, while issues involving panels, feeders, underground conductors, exterior lighting, controls, or multiple buildings may require more detailed testing, access coordination, and repair planning.

Why do batteries and electrical components fail faster in Florida than in other states?

Florida’s intense ambient heat raises under-hood temperatures dramatically and also stresses exterior electrical equipment. Heat accelerates chemical breakdown in batteries, dries insulation, speeds corrosion, and can shorten the useful life of equipment exposed to sun, humidity, rain, and salt air.

What is the most dangerous mistake to avoid when jump-starting a car?

The most dangerous mistake is reversing cable polarity. Connecting positive to negative can fry computer modules, destroy the alternator’s internal bridge rectifier, create intense electrical arcing, and potentially cause the battery to explode.

For building electrical systems, the comparable mistake is repeatedly resetting breakers, bypassing protection, or energizing equipment after a fault without inspection. If a circuit keeps tripping or equipment shows heat, smoke, buzzing, corrosion, or burning odors, stop using it and have it evaluated by a qualified professional.

Conclusion

Your vehicle’s electrical system powers everything from essential engine timing and safety systems to everyday comforts like power windows and air conditioning. If your issue is inside the vehicle, a qualified auto electrical repair specialist is the right resource.

If your concern involves a building, business, multifamily community, hospitality property, residence, parking area, exterior lighting, EV charging infrastructure, or other site electrical system, Performance Electrical Contracting Inc. can help. Our team delivers industrial-grade power and wiring solutions for commercial, multifamily, infrastructure, hospitality, and residential facilities across Florida and the Southeast. Discover how our team provides reliable electrical solutions in Jacksonville to keep your properties powered safely and efficiently.

For most kitchen remodels, set the switch centerline about 42 to 48 inches above the finished floor. The common residential reference is 48 inches, but a switch located over a standard 36-inch countertop is often placed with the bottom of the electrical box about 4 inches above the counter. That usually puts the switch at roughly 40 to 46 inches from the finished floor, depending on the box, plate, and countertop details.

Use these checks before rough-in:

1. Measure from the finished floor, not the subfloor.
2. Coordinate the switch with countertop height, backsplash tile, and upper cabinets.
3. Keep accessible controls within the applicable reach range; 48 inches is the typical maximum for an unobstructed forward reach.
4. Confirm local amendments and project-specific accessibility requirements. The NEC does not set one standard residential switch height, though it does limit general-use switch mounting height.

Getting kitchen switch height right prevents a small layout choice from becoming an expensive drywall, tile, or cabinet correction later. It also helps property managers deliver a cleaner finish, consistent controls, and a safer, easier-to-use kitchen.

Understanding Standard Kitchen Switch Height and National Codes

When planning an electrical rough-in, electricians and general contractors rely on established industry practices alongside strict safety regulations. While homeowners frequently assume there is a single mandatory number for every light switch in the house, the reality is more nuanced.

According to the National Electrical Code (NEC) Section 404.8(A), all switches and circuit breakers used as switches must be installed so the center of the grip of the operating handle, in its highest position, is not more than 6 feet 7 inches (2.0 meters) above the floor or working platform. Beyond establishing this maximum upper ceiling limit, the NEC does not mandate a universal minimum height for general-use residential wall switches. To master these principles, reviewing electrical code basics is an essential starting point for any remodeling project.

In everyday residential construction, the industry trade standard has long settled on 48 inches from the finished floor to the center of the electrical box. This 48-inch guideline emerged largely because standard drywall sheets measure 4 feet wide. Installing boxes at 48 inches allows drywallers to make simple horizontal cuts along sheet edges rather than carving awkward holes through the center of panels.

However, kitchens present a unique working environment. Between base cabinets, countertop prep surfaces, tile backsplashes, and overhead cabinetry, the standard wall height often requires practical adjustments. While external resources like Bob Vila’s light switch height guidelines detail general residential rules, kitchen spaces demand tailored dimensions to preserve ergonomic function and aesthetic symmetry. Local municipal amendments may also introduce specific requirements that override general trade conventions.

General Wall Switches vs. Countertop Switch Placement

A standard room switch sits on an open wall near an entryway latch. Centering the box 48 inches above the finished floor places the switch at natural standing hip-to-elbow level for an average adult, allowing you to easily operate the lighting without stretching or bending down.

In contrast, kitchen perimeter walls feature standard 36-inch-high base cabinets topped with quartz, granite, or laminate work surfaces. If you were to mount a countertop switch at the standard 48-inch centerline, the switch plate would float awkwardly in the upper section of the backsplash, potentially clashing with the bottom edges of upper cabinets or under-cabinet task lighting strips.

As highlighted in guides on proper wall switch heights, standard practice lowers countertop-mounted switches so the bottom of the electrical box sits roughly 4 inches above the countertop surface. Because finished base counters stand at 36 inches, this calculation places the overall switch centerline between 40 and 44 inches from the finished floor. When installing multi-gang switch banks that combine main kitchen lighting, pendant tracks, and under-cabinet dimmers, maintaining a perfectly level horizontal centerline ensures a clean, cohesive appearance across the entire wall.

ADA Compliance and Accessibility Standards

Accessibility guidelines establish strict boundaries for control placements in both commercial properties and modern accessible residential designs. The Americans with Disabilities Act (ADA) Standards for Accessible Design state that operable parts—including light switches, dimmers, and environmental controls—must fall within an unobstructed forward reach range between 15 inches minimum and 48 inches maximum above the finished floor.

For individuals using wheelchairs or mobility aids, a switch installed right at the 48-inch maximum can prove challenging to reach across a deep base cabinet. Because standard kitchen countertops extend 24 to 25.5 inches outward from the drywall, the reach depth creates an obstruction. Under ADA rules, if an reach obstruction depth measures between 20 and 25 inches, the maximum allowable reach height drops to 44 inches.

Applying universal design principles means mounting accessible kitchen switches at a 40-to-44-inch centerline, ensuring full usability for people of all physical capabilities, petite adults, and aging-in-place homeowners. Additionally, accessible switches must sit at least 15 inches away from inside wall corners to ensure sufficient side clearance for wheelchair footrests.

Countertop, Island, and Backsplash Switch Placement Rules

Integrating electrical rough-in boxes into a kitchen backsplash requires careful coordination among several trades, including framers, cabinetmakers, tile setters, and electricians.

The vertical span between a 36-inch countertop and the underside of standard upper wall cabinets is typically 18 inches. This 18-inch clearance zone must accommodate your wall switches, general-purpose appliance receptacles, and specialized accent controls while avoiding common Florida electrical code violations such as improper box depths or inadequate spacing near plumbing fixtures.

The NEC mandates that no point along a kitchen countertop wall space be farther than 24 inches from an electrical receptacle outlet, ensuring that small kitchen appliances with standard two-foot cords can plug in anywhere along the workspace. While switches do not fall under this strict receptacle spacing mandate, they are frequently ganged together with countertop outlets inside multi-gang electrical boxes. Keeping these boxes leveled at a consistent elevation preserves the visual symmetry of your tile backsplash.

Measuring Kitchen Switch Height Above Countertops and Backsplashes

To achieve an attractive and functional installation, apply the 4-inch clearance rule. Positioning the bottom edge of the switch box roughly 4 inches above the finished countertop plane provides multiple practical benefits:

• Splash Zone Protection: Elevates electrical devices above accidental liquid spills, standing moisture, and food preparation messes.
• Appliance Clearance: Keeps cords and appliance bodies from constantly bumping against switch toggles and rocker paddles.
• Backsplash Proportions: Centers the switch box cleanly inside popular tile arrangements, such as standard 3×6 subway tile or 4-inch slab granite backsplashes.
• Cabinet Clearance: Leaves 10 to 12 inches of open vertical drywall space above the switch plate, preventing interference with under-cabinet light valances or decorative crown moldings.

Professional electricians never guess these heights on raw wall studs. We establish a finished floor reference benchmark, account for countertop slab thickness (typically 1.25 inches for 3cm stone), and utilize self-leveling cross-line lasers or pre-marked story poles to align every single box across multiple stud bays.

Garbage Disposal Switches and Island Locations

Positioning switches for dedicated kitchen appliances like garbage disposals involves balancing immediate reach with accidental operation safety. A traditional disposal switch sits on the backsplash wall adjacent to the kitchen sink, mounted at the standard 40-to-44-inch height. This location allows you to operate the switch with one hand while managing the sink faucet with the other, situated at a safe distance outside the direct sink water basin splash zone.

In modern open-concept kitchens featuring central islands or peninsulas without adjacent walls, mounting switches requires alternative solutions. For dedicated garbage disposal operation, an increasingly popular approach replaces wall switches with a countertop-mounted pneumatic air button. These systems use air pressure transferred through a small flexible vinyl tube to trigger a remote electrical relay under the sink base cabinet, completely eliminating 120-volt wiring from the wet countertop surface.

When main room lighting or island pendant dimmers must be mounted directly onto a kitchen island, electricians install electrical boxes inside the structural cabinet end panels. In these configurations, our residential electrical services ensure that all island wiring complies with NEC box fill, physical protection, and tamper-resistant GFCI regulations.

Step-by-Step Installation and Layout Planning for Kitchen Remodels

Executing a kitchen remodel without layout errors requires a systematic planning framework during the initial rough-in phase before insulation and drywall cover the studs.

Follow this step-by-step checklist during rough-in layout planning:

1. Establish Finished Floor Elevation (FFE): Identify the final flooring material (hardwood, thick porcelain tile, or vinyl plank) and mark the true finished floor line on raw wall studs.
2. Verify Cabinet and Countertop Specs: Confirm the exact height of base cabinets, countertop thickness, and the bottom line of upper cabinets from architectural shop drawings.
3. Deploy Cross-Line Laser Level: Project a continuous horizontal reference line across all kitchen walls to ensure identical box heights across varying stud surfaces.
4. Set Box Stud Face Offset: Adjust the mounting bracket on each electrical box so it sits proud of the stud by the exact thickness of the finished wall material (e.g., 1/2-inch drywall plus tile backsplash thickness).
5. Confirm Structural Clearances: Ensure boxes are not placed where cabinet mounting rails, range hoods, or decorative trim screws will penetrate the wall cavity.
6. Schedule Rough-In Inspection: Secure local municipal approvals following our guidelines on electrical inspection and permitting rules before closing up wall cavities.

Factors That Alter Placement: Cabinets, Tile, and User Height

Several architectural variables can necessitate shifting your kitchen switch boxes up or down an inch or two from standard benchmarks.

Under-cabinet lighting installations frequently feature deep decorative face frames (valances) designed to conceal light fixtures. If a switch box is mounted too high on the backsplash, the oversized decorative wall plate may collide with this downward-hanging wooden lip.

Tile patterns also influence final positioning. In high-end custom kitchens featuring full-height mosaic tiles, patterned encaustic tiles, or continuous quartz slab backsplashes, adjusting the switch height slightly allows the box to center cleanly within a specific tile course or grout joint. This avoids sliver cuts in delicate tiles, creating a much cleaner aesthetic finish.

Finally, consider the primary users of the space. Taller families may prefer switches mounted slightly higher at a 46-inch centerline to reduce bending, whereas households designing for universal accessibility benefit from lowering controls toward a 40-to-42-inch range.

Adjusting Existing Kitchen Switch Height Without Major Rewiring

When remodeling an existing kitchen, you will often find existing switch boxes mounted at awkward heights left over from previous decades. Fortunately, shifting an existing switch up or down several inches does not always require complete home rewiring.

If the non-metallic sheathed cable (Romex) inside the wall cavity contains sufficient slack, an electrician can cut a new opening in the drywall at the desired height, pull the existing cable into an “old-work” (remodel) junction box, and patch the abandoned drywall opening.

When the existing wiring lacks enough slack to reach the new elevation safely, you cannot simply bury a spliced wire inside the finished wall. Code mandates that all wire splices remain permanently accessible inside an approved junction box. In such cases, electricians can install a low-profile junction box with a blank decorative cover plate at the original location, or pull a fresh run of cable from the nearest accessible source, creating a clean upgrade when upgrading old outlets and switches.

Frequently Asked Questions About Kitchen Electrical Placement

What is the exact distance a kitchen switch should sit above the countertop?

The standard industry recommendation is to place the bottom of the electrical box approximately 4 inches above the finished countertop surface. Given standard 36-inch base cabinets, this positions the centerline of the switch plate between 40 and 44 inches from the finished floor. This elevation clears the 4-inch splash guards, aligns cleanly with standard tile layouts, and protects controls from countertop spills.

Does the National Electrical Code dictate a mandatory minimum switch height?

No. The National Electrical Code (NEC 404.8(A)) only mandates an upper limit: the operating handle of a general-use switch cannot exceed 6 feet 7 inches (79 inches) above the floor in its highest active position. The NEC does not set a mandatory minimum height for residential wall switches. Standard residential heights (48 inches on open walls, 40–44 inches over counters) are builder trade standards and ergonomic conventions rather than explicit minimum legal mandates.

How do you measure switch height when new flooring has not yet been installed?

To measure switch height accurately on bare subflooring, you must establish the Finished Floor Elevation (FFE) before fastening rough-in boxes to studs. Determine the total thickness of all finished flooring layers—including underlayment, mortar beds, and tile or hardwood (commonly 1/2 inch to 3/4 inch total). Add this thickness to your target rough-in height, mark a reference line on the studs using a story pole or tape measure, and mount the electrical boxes relative to that adjusted benchmark.

Conclusion

Determining the proper height for your kitchen switches is a foundational layout decision that shapes the daily comfort, visual elegance, and long-term accessibility of your home. By coordinating rough-in dimensions with cabinet layouts, tile patterns, and universal reach guidelines, you ensure a smooth, hassle-free remodel that looks beautiful and functions reliably for years to come.

At Performance Electrical Contracting Inc., our licensed professionals deliver pre-qualified, on-time, and value-driven electrical solutions across Jacksonville, Florida, and the greater Southeast. Whether you are remodeling a residential kitchen, managing a multifamily property, or building commercial infrastructure, our team ensures complete code compliance and flawless craftsmanship on every project. For more details on electrical regulations and installation planning, explore our guide to light switch height code requirements or contact us today to schedule your comprehensive project consultation.

NFPA 70 standards, commonly called the National Electrical Code (NEC), set the baseline rules for safe electrical design, installation, and inspection. For facility managers, they help prevent shock, electrical fires, equipment damage, and costly inspection failures.

Before planning an upgrade, renovation, solar installation, battery system, or EV charging project, confirm three things:

1. Which NEC edition your state and local jurisdiction has adopted.
2. Any local amendments enforced by the Authority Having Jurisdiction (AHJ).
3. That the design, materials, installation, and inspection process meet the applicable code.

The NEC has guided electrical safety since 1897 and is updated every three years. The 2026 NEC is the current edition, but the edition legally required for your building may be older. Local adoption and enforcement determine what applies on site.

This guide explains the NEC in plain language, including core protection rules, grounding, conductor ratings, new energy technology requirements, and the difference between installation rules in NFPA 70 and workplace practices in NFPA 70E.

Understanding the Scope and Structure of NFPA 70 Standards

At its core, NFPA 70 is not a federal statute; it is a model safety standard developed by the National Fire Protection Association (NFPA) and approved by the American National Standards Institute (ANSI). Despite lacking direct federal authority, it serves as the benchmark for electrical installation safety across all 50 U.S. states.

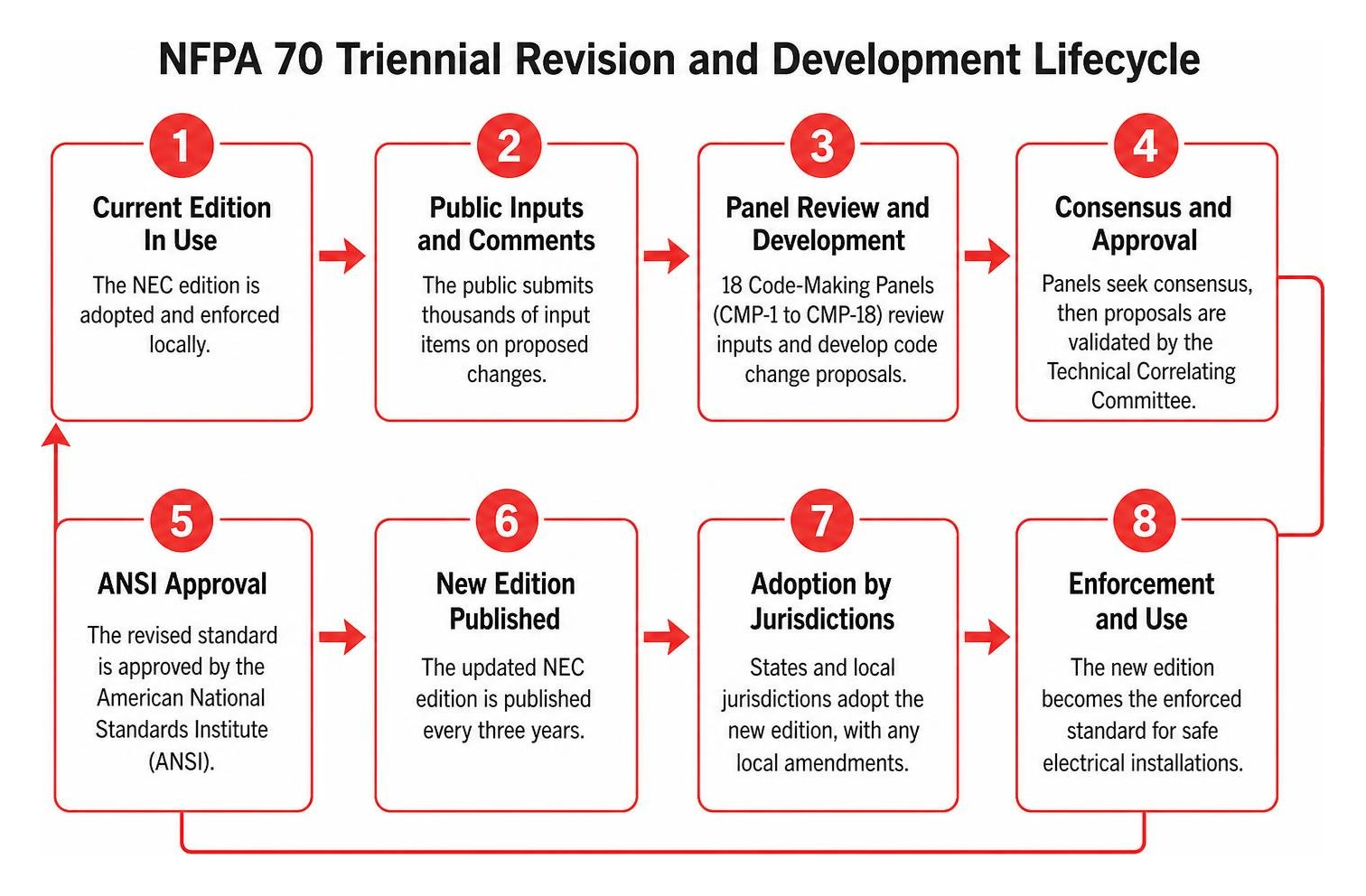

The standard does not write itself behind closed doors. The NFPA 70 (NEC) Code Development process is a consensus-driven effort maintained by 18 specialized Code-Making Panels (CMP-1 through CMP-18) overseen by a Technical Correlating Committee. These panels consist of electrical engineers, installation contractors, testing lab representatives, union delegates, fire marshals, and building inspectors.

Every three years, the panels review thousands of public inputs and comments to publish a revised edition. As of August 2026, the active edition is the 2026 NEC, representing 46 distinct editions published over its 125-plus-year lifespan.

Core Objectives and the Role of the National Electrical Code

The primary objective of the NEC, formally stated in Article 90.1, is the practical safeguarding of persons and property from hazards arising from the use of electricity. Electrical failures remain one of the leading causes of commercial property loss and structural fires. When we examine the industry standards that power commercial electrical installation, NFPA 70 stands as the foundation because it eliminates the guesswork behind conductor sizing, short-circuit protection, physical cable routing, and thermal safety.

Crucially, the NEC is an installation standard, not a design specification manual or an instruction book for untrained individuals. It establishes the bare minimum requirements necessary for an electrical system to operate safely, free from electrocution and thermal ignition hazards, throughout its operational life.

Chapter Breakdown from Wiring Design to Special Conditions

The National Electrical Code spans around 1,000 pages of technical requirements organized into nine core chapters, followed by Informative Annexes A through K:

• Chapter 1: General (Articles 100–110) — Covers essential definitions, electrical equipment examination, installation requirements, and dedicated working space clearances around switchboards and panelboards.
• Chapter 2: Wiring and Protection (Articles 200–250) — Details branch circuits, feeders, service entrance equipment, overcurrent protective devices, and grounding/bonding rules.
• Chapter 3: Wiring Methods and Materials (Articles 300–398) — Governs raceways, conduit types (EMT, PVC, RMC), cable assemblies, junction box sizing, and physical conductor protections.
• Chapter 4: Equipment for General Use (Articles 400–490) — Regulates everyday fixtures, flexible cords, panelboards, switchgear, electric motors, air-conditioning equipment, and transformers.
• Chapter 5: Special Occupancies (Articles 500–590) — Establishes stringent requirements for hazardous (classified) locations containing flammable vapors or dusts, health care facilities, commercial garages, and temporary wiring.
• Chapter 6: Special Equipment (Articles 600–695) — Governs electric signs, elevators, electric vehicle supply equipment, swimming pools, and solar photovoltaic (PV) arrays.
• Chapter 7: Special Conditions (Articles 700–760) — Regulates emergency power systems, standby systems, energy storage installations, and fire alarm circuits.
• Chapter 8: Communications Systems (Articles 800–840) — Dedicated to communications circuits, network cabling, radio and television equipment, and optical fiber cables.
• Chapter 9: Tables — Contains mandatory mathematical tables for conductor dimensions, conduit fill percentages, and raceway properties.
• Informative Annexes (A through K) — Provides non-mandatory engineering calculations, conduit fill formulas, reference standards, and model administration rules.

NFPA 70 vs. NFPA 70E: Installation vs. Workplace Safety

A common point of confusion among building owners and plant engineers is the distinction between NFPA 70 and NFPA 70E. While their numbers sound almost identical, their regulatory mandates, enforcement mechanisms, and everyday applications serve completely different purposes.

Applying NFPA 70 Standards to Facility Design and Construction

NFPA 70 governs the physical infrastructure installed behind your facility’s walls, inside utility rooms, and above drop ceilings. When planning a commercial renovation, the NEC dictates exact requirements: how many branch circuits must serve a mechanical room, the minimum depth of working space in front of an 800-amp switchboard (Section 110.26), and how conduit must be anchored to concrete slabs.

It also covers architectural specifics. For example, maintaining accessibility and safety when locating devices requires knowing the standard light switch height requirements explained by code. Adhering to NFPA 70 ensures that once the building official issues the certificate of occupancy, the building’s permanent wiring can operate without overheating or sparking.

Navigating Operational Safety and OSHA Alignment with NFPA 70E

Once your electrical system is energized and operational, the focus shifts to personnel safety. This is where NFPA 70E comes into play. Developed at OSHA’s request, NFPA 70E provides actionable work practices that satisfy OSHA Subpart S (29 CFR 1910) and Subpart K (construction).

Under NFPA 70E, working on energized equipment is strictly restricted to situations where de-energizing introduces additional hazards or is completely infeasible. If justified live troubleshooting is required, NFPA 70E mandates:

• Formal, documented Energized Electrical Work Permits.
• Shock and arc-flash risk assessments to define boundary perimeters.
• Verified personal protective equipment (PPE) based on calculated incident energy levels.
• A dedicated second qualified safety observer during justified live work tasks.

While NFPA 70 guarantees your electrical room will not catch fire under nominal load, NFPA 70E makes sure your in-house technicians return home safely after performing maintenance.

Key Code Mandates: Protection, Grounding, and Temperature Ratings

Meeting NFPA 70 requires precise attention to protective devices, fault-clearing paths, and conductor heat dissipation. Misinterpreting these core mandates can lead to tripped breakers, damaged equipment, or catastrophic arc faults.

GFCI, AFCI, and Equipment Protection Protocols

The NEC relies on specialized protective devices to shield both humans and property from distinct failure modes:

• Ground-Fault Circuit-Interrupters (GFCI): Designed specifically for personnel protection, a Class A GFCI continuously monitors the balance of current between the ungrounded (hot) and grounded (neutral) conductors. If current leaks to ground anywhere between 4 to 6 milliamperes (mA), the device trips within milliseconds. Section 210.8 mandates GFCI protection across all commercial kitchens, bathrooms, outdoor locations, rooftops, and near wet sinks.
• Arc-Fault Circuit-Interrupters (AFCI): While GFCIs protect humans from shock paths, AFCIs protect buildings from fires. An AFCI detects unintended, erratic electrical arcing across damaged insulation or loose terminal connections that would not pull enough current to trip a standard thermal-magnetic breaker.
• Short-Circuit and Overcurrent Protection (Article 240): Circuit breakers and fuses must be rated to interrupt prospective fault currents (Short-Circuit Current Rating / SCCR). If an available fault current from the utility transformer reaches 42,000 amps, a breaker rated for only 10,000 Interrupting Capacity (AIC) will explode during a bolted fault.

Grounding, Bonding, and Ampacity Derating Rules

Grounding and bonding under Article 250 are critical to power quality and life safety. Grounding connects the electrical system to the earth (via ground rods, concrete-encased electrodes, or ground rings) to stabilize voltage during lightning strikes and line surges. Bonding joins all non-current-carrying metal parts together (conduit, equipment enclosures, structural steel) to create a low-impedance electrical path back to the electrical source. This low-impedance path allows enough fault current to flow instantly, ensuring the circuit breaker trips immediately during a ground fault.

Conductor sizing requires careful attention to thermal dynamics. Wire ampacity is governed by Article 310 and depends on insulation temperature ratings ($60^circtext{C}$, $75^circtext{C}$, or $90^circtext{C}$) and environmental conditions:

1. Conduit Fill Derating: When more than three current-carrying conductors share a single raceway, cumulative heat cannot easily escape. NEC Table 310.15(C)(1) requires derating the conductor’s allowable ampacity (for example, applying an 80% adjustment factor for 4 to 6 conductors).
2. Ambient Temperature Adjustments: Conductors operating in mechanical rooms or outdoors in hot climates must be derated if the ambient temperature exceeds $30^circtext{C}$ ($86^circtext{F}$).
3. Rooftop Solar Adjustments: Conductor raceways exposed to direct sunlight on commercial rooftops experience significant solar heating, requiring specific temperature adders to prevent insulation breakdown.

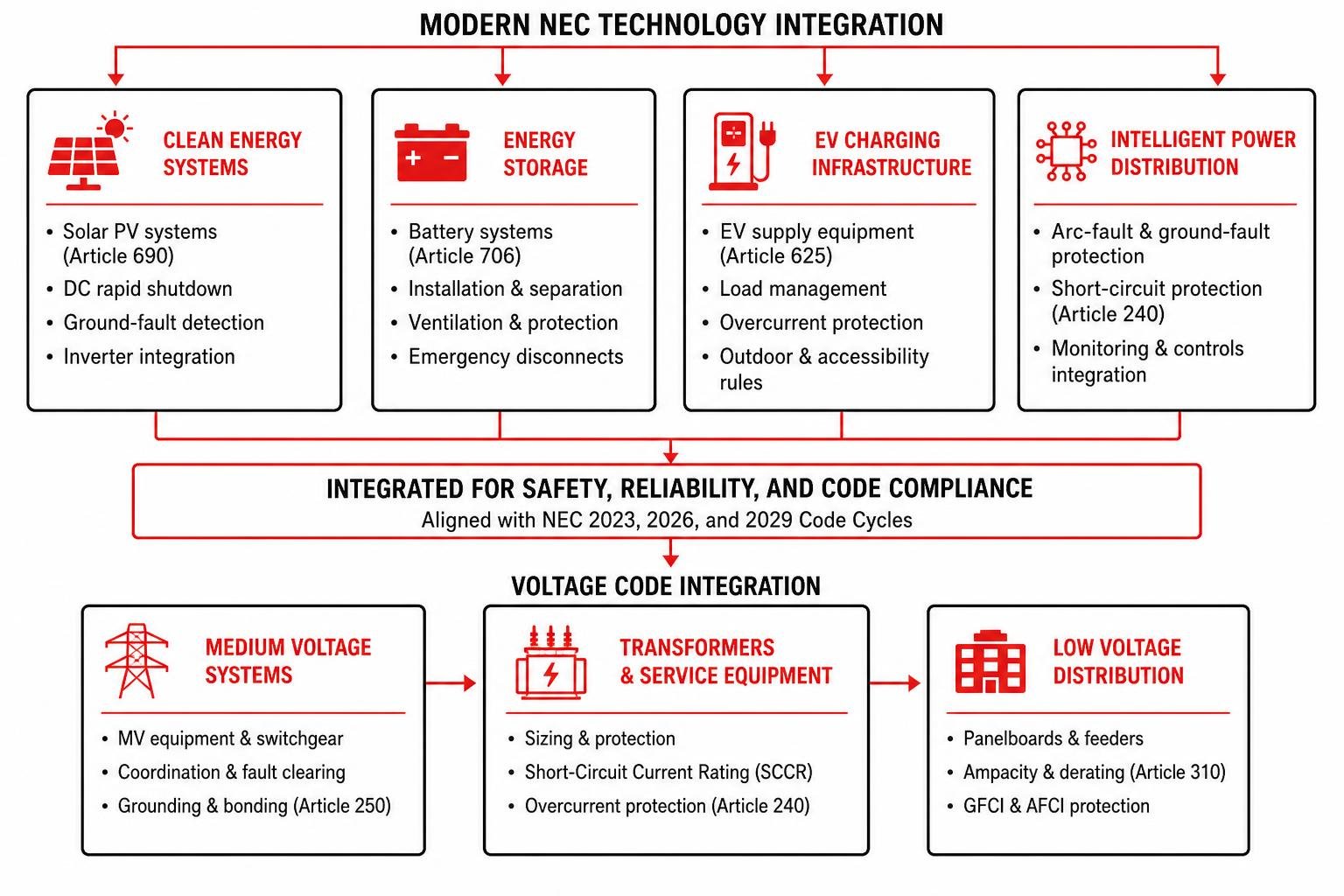

Modern Technology Integration in the 2023, 2026, and 2029 Code Cycles

The electrical industry is changing rapidly, driven by electrification, renewable generation, microgrids, and intelligent power distribution. In response, the NEC is undergoing a major multi-cycle reorganization that began in the 2023 edition, expanded in the NFPA 70, National Electrical Code (NEC) Handbook (2026), and will conclude in the 2029 code cycle.

Clean Energy Systems, Storage, and EV Infrastructure Under NFPA 70 Standards

Commercial facilities are no longer just passive consumers of grid power; they are active power producers and storage hubs:

• Solar Photovoltaic (PV) Systems (Article 690): The code establishes strict safety rules for DC array rapid shutdown, ground-fault detection, and inverter integration, preventing dangerous DC arcs and protecting first responders on facility rooftops.
• Energy Storage Systems (Article 706): In earlier editions, battery banks were governed simply under standby battery rules (Article 480). Article 706 explicitly regulates high-density commercial Energy Storage Systems (ESS), mandating detailed commissioning, emergency ventilation, and physical clearances to mitigate lithium-ion thermal runaway risks.
• Electric Vehicle Power Transfer (Article 625): The NEC has moved well beyond basic Level 2 charging stations. Article 625 now provides comprehensive rules for bidirectional charging and Electric Vehicle Power Export Equipment (EVPE), allowing electric vehicle fleets to act as backup power generation sources for commercial facilities during utility outages.

Reorganization of High-Voltage and Class 4 Fault-Managed Circuits

To simplify code navigation, technical panels restructured the NEC’s voltage boundaries. Historical voltage divisions (such as the traditional 600V threshold) have been modernized to establish clean cutoff points at 1,000 Volts AC and 1,500 Volts DC across all wiring and equipment articles.

Additionally, Article 726 regulates Class 4 Fault-Managed Power Systems (FMPS). Unlike traditional power-limited circuits (Class 2 and Class 3), Class 4 systems deliver hundreds of watts over long-distance, small-gauge twisted-pair cables. They monitor the circuit for human touch, short circuits, or ground faults hundreds of times per second, cutting power instantly before an electric shock or fire can occur. This technology is quickly becoming the standard for powering intelligent LED lighting networks, 5G transmitters, and IoT infrastructure in modern facilities.

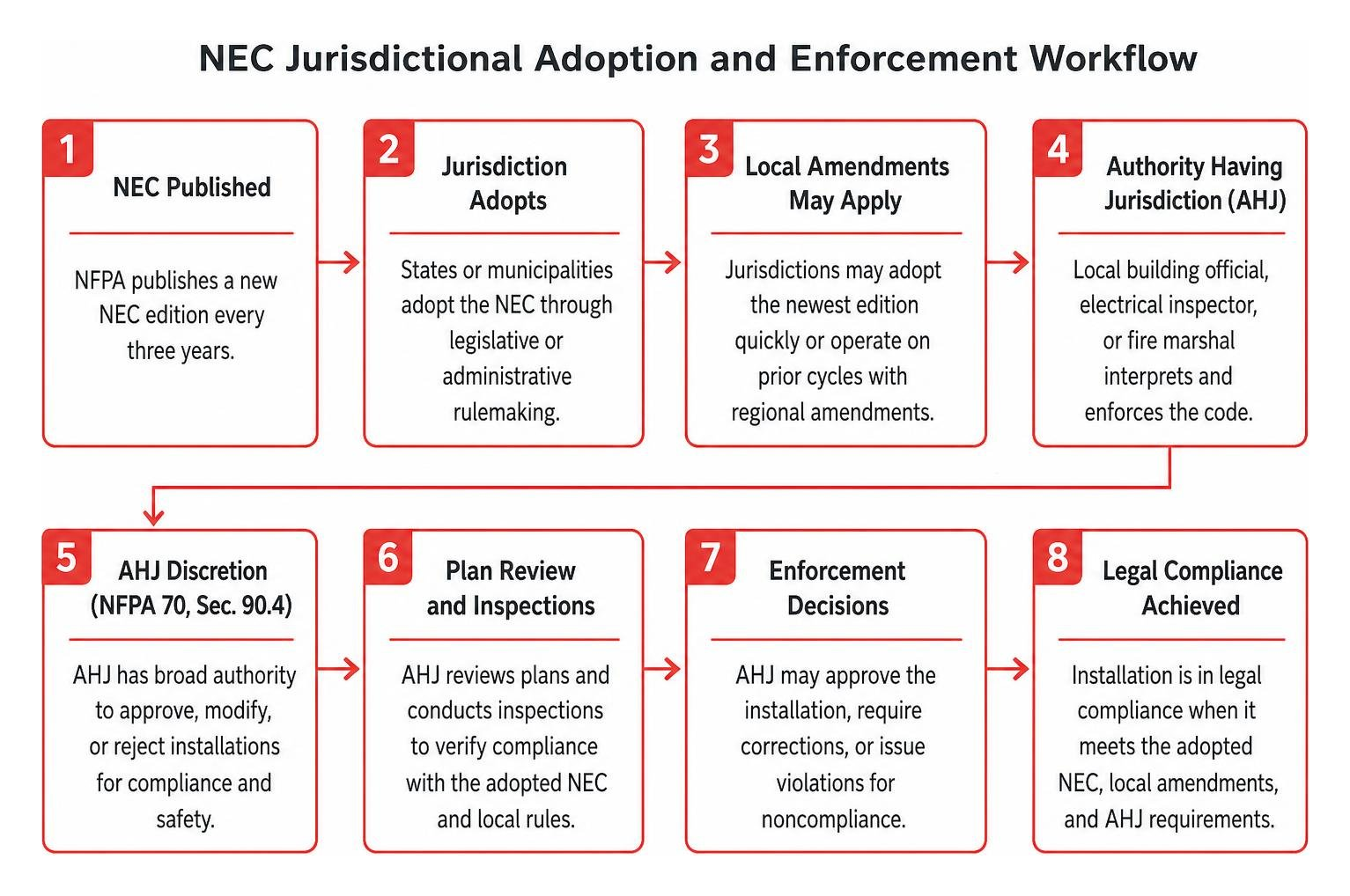

Adoption, Enforcement, and Legal Compliance Across Jurisdictions

One of the most important lessons for any facility manager is that the NEC is not self-enforcing. Publishing a new code edition every three years does not instantly make it statutory law in your municipality.

Authority Having Jurisdiction (AHJ) Powers and Inspection Protocols

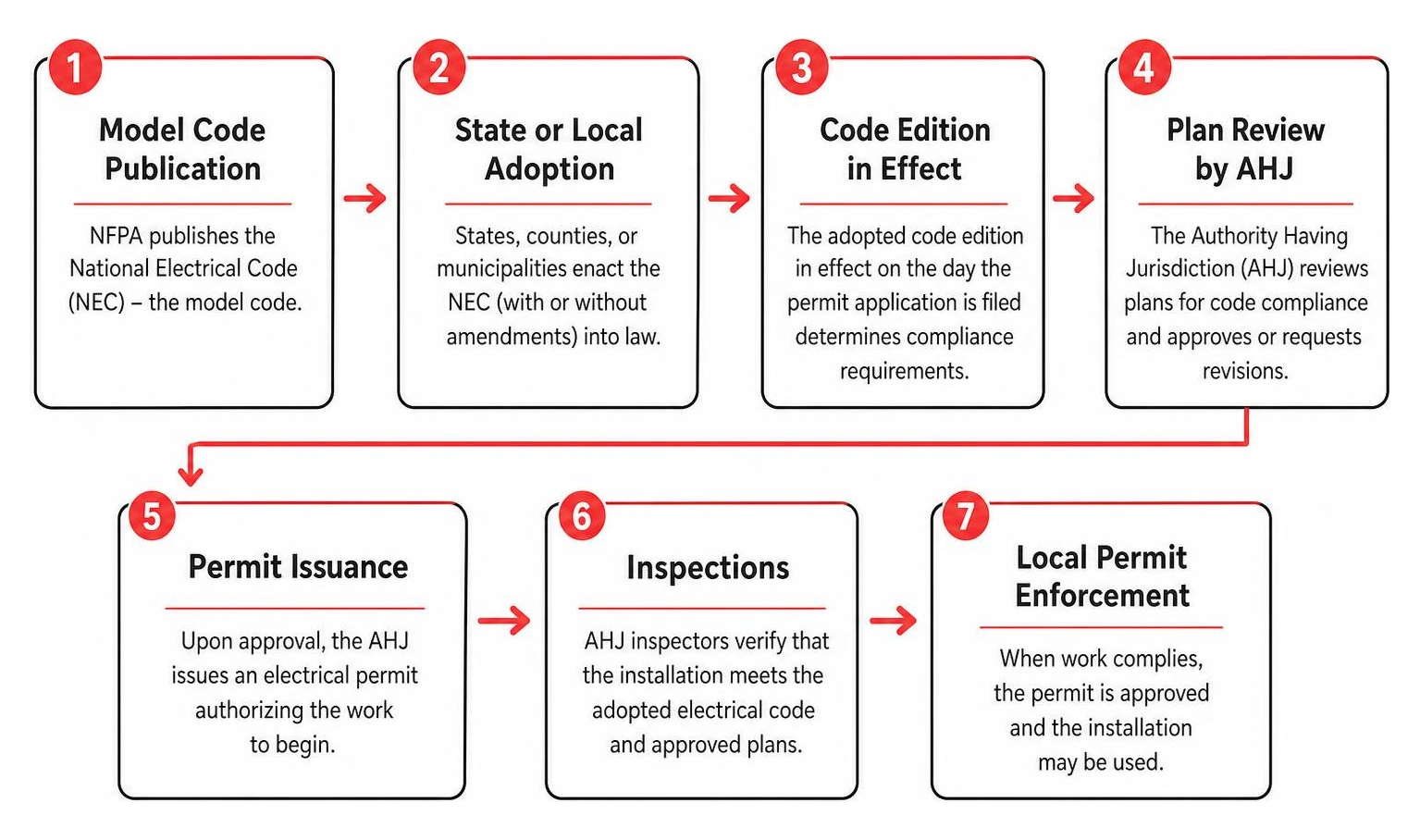

States and municipalities adopt the NEC through legislative or administrative rulemaking, often modifying the model code with regional amendments. For instance, some states adopt the newest edition within months, while others operate on prior cycles.

The individual responsible for interpreting and enforcing these rules on your project is the Authority Having Jurisdiction (AHJ)—typically the local municipal building official, electrical inspector, or fire marshal. The AHJ holds broad discretionary power under Section 90.4 to:

• Approve equipment and wiring methods.
• Grant variances or waivers for practical difficulties.
• Reject installations that do not comply with the adopted code, even if designed by a licensed professional engineer.
• Require field evaluation testing for non-listed or custom-built switchgear assemblies.

When coordinating renovations, you can save significant time and money by navigating electrical code compliance inspection rules and permits proactively with local officials before construction begins.

Public Access, NRTL Listing, and Model Code Adoptions

Under Section 110.2 and 110.3, the NEC requires all electrical equipment to be approved. In practical terms, this means materials must be listed and labeled by an OSHA-approved Nationally Recognized Testing Laboratory (NRTL), such as Underwriters Laboratories (UL), Intertek (ETL), or CSA Group. The AHJ will verify that equipment is installed in strict accordance with any instructions included in its commercial listing.

Because safety codes serve the public interest, many wonder about access costs. While printed codebooks and digital subscriptions carry licensing fees that fund the NFPA’s independent consensus panels, the NFPA provides free online read-only access to all safety standards through its website. Facility managers can register for a free account to review any edition of the NEC directly from their web browser.

Frequently Asked Questions About NFPA 70

What is the difference between NFPA 70 and local electrical codes?

NFPA 70 is a model code written by national technical committees. A local electrical code is the enforceable law enacted by your state, county, or municipal government. While most local codes adopt NFPA 70 wholesale, jurisdictions frequently add localized amendments, delete specific articles, or alter administrative permitting requirements. The locally adopted version is always the legal standard enforced on your job site.

How often are NFPA 70 editions updated and enforced?

The NFPA updates and publishes the National Electrical Code on a strict three-year cycle (such as the 2020, 2023, and 2026 editions). However, legal enforcement depends entirely on how quickly your state or municipality adopts each new edition. It is common for a local jurisdiction to enforce the 2020 or 2023 edition while the 2026 code is already published.

Can facility managers access the National Electrical Code for free online?

Yes. The NFPA makes all of its codes and standards available for free, read-only public review on its official website. After creating a free account, you can select NFPA 70, choose your jurisdiction’s adopted edition year, and search through chapters and articles using the built-in digital viewer.

Maintaining Safe, Compliant Facilities

Managing commercial electrical infrastructure requires vigilance, technical understanding, and reliable professional partners. Overlooking simple code mandates—such as dedicated switchboard clearances, continuous grounding paths, or ampacity derating—can lead to project delays, failed municipal inspections, equipment downtime, or serious workplace hazards.

As a facility manager, the best approach is to conduct regular electrical system audits and partner with pre-qualified electrical contractors who understand local code amendments inside and out. To keep your commercial or multifamily properties fully compliant and operating smoothly, review our guide on common electrical code violations in Florida and how to avoid them. Our team at Performance Electrical Contracting Inc. is always here to help you navigate code updates, design safe power distributions, and deliver projects on time and within budget.

Operating a hospitality property means managing multi-family sleeping quarters alongside public assembly areas, high-volume commercial kitchens, and expansive common spaces. The foundational standards governing any commercial hotel fire alarm installation include:

• NFPA 72 (National Fire Alarm and Signal Code): Dictates exact device placement, sound output levels, wiring integrity, circuit supervision, emergency notification pathways, and signal transmission pathways.
• NFPA 101 (Life Safety Code): Governs occupant protection, life safety strategies, sleeping area notification, egress marking, and emergency evacuation management across hospitality spaces.
• International Building Code (IBC): Classifies hotels under Group R-1 (residential transient) occupancies and outlines required integrations with automatic sprinkler systems, smoke control systems, elevated elevator recalls, and structural fire doors.
• Local AHJ (Authority Having Jurisdiction) Rules: Local fire marshals often enforce specific municipal amendments that take precedence over general model codes, including specialized municipal reporting protocols.

Maintaining full compliance reduces legal exposure and protects your property from severe liability claims in the event of an incident. Furthermore, insurance carriers regularly tie property coverage premiums directly to verifiable safety ratings, system maintenance records, and code compliance logs. Failing to address underlying electrical issues can compromise system reliability—learn the 5 Warning Signs Your Commercial Electrical System Needs Immediate Attention.

Backup Power and Secondary Electrical Systems

Fire alarm systems must remain fully functional during primary utility power outages to ensure guest safety continuously. NFPA 72 mandates that every system feature a secondary power supply capable of automatically taking over should main power fail without interrupting active monitoring.

1. Standby Batteries: Sealed lead-acid or gel-cell batteries housed inside or adjacent to the main control panel must provide at least 24 hours of standard supervisory operation, followed immediately by 5 consecutive minutes of full alarm notification (or 15 minutes for emergency voice systems).
2. Emergency Generators: When an emergency generator serves as secondary power, it must start and transfer load automatically within 10 seconds of main power loss, supported by dedicated battery back-up to bridge the transfer window seamlessly.

Required Documentation and Compliance Logging

To satisfy fire inspectors and insurance auditors during routine inspections, hotels must maintain systematic, accessible records on site. Per NFPA 72 standards, your compliance binder or digital management system should track:

• Device Inventories: A complete, detailed mapping of every detector, manual pull station, waterflow switch, duct sensor, and notification appliance across the property.
• Inspection and Test Reports: Documented outcomes from weekly, monthly, semiannual, and annual maintenance evaluations conducted by qualified technicians.
• Maintenance Logs: Historical records detailing component replacements, battery updates, panel resets, software revisions, and sensitivity recalibrations.

Key Components of a Modern Fire Safety System

A fully integrated commercial system relies on interconnected elements that gather environmental data, process threats, and broadcast clear directives throughout the facility. Modern fire safety design integrates central processing panels, distributed emergency voice communication systems, and dedicated monitoring channels to ensure immediate life safety response.

Addressable Signaling Line Circuits (SLCs) allow the primary Fire Alarm Control Panel (FACP) to pinpoint the precise room, hallway, or mechanical zone reporting a threat. Secondary off-site monitoring is managed through dual-path transmitters utilizing redundant cellular and IP connections to route immediate alarm signals to central dispatch centers, bypassing potential phone line disruptions.

Smart Sensors and Multi-Criteria Hotel Fire Alarm Detectors

Modern commercial hospitality facilities deploy advanced multi-criteria sensors in guest rooms and common spaces. These units evaluate multiple environmental parameters simultaneously—such as airborne particulates, ambient thermal changes, and carbon monoxide (CO) gas levels.

By requiring confirmation across multiple sensor elements (such as verifying a rapid heat spike alongside smoke particulates), smart detectors effectively eliminate common nuisance triggers from harmless shower steam, aerosol hairsprays, or light cooking smoke while speeding up genuine fire detection. Specialized heat detectors are installed in areas unsuited for photo-electric smoke sensors, such as mechanical rooms, commercial kitchens, laundry facilities, and boiler spaces.

In-Room Notification and ADA Accessibility Compliance

NFPA 72 mandates specific low-frequency notification standards for sleeping accommodations to wake occupants effectively. Notification devices in guest rooms must generate a 520Hz low-frequency square-wave audio tone. Standard high-pitch fire alarm horns are far less effective at waking sleeping occupants, alcohol-impaired guests, deep sleepers, or individuals with mild to severe hearing loss.

For Americans with Disabilities Act (ADA) compliance, designated accessible guest rooms must incorporate specialized notification appliances:

• High-Intensity Visual Strobes: Synchronized flashes engineered to wake sleeping guests without triggering photosensitive seizures or disorientation.
• Tactile Devices (Bed Shakers): Connected directly to the room’s sounder base or FACP output to vibrate the bed mattress vigorously upon system activation.

Preventing Nuisance Triggers and Managing False Evacuations

False fire alarms cost hospitality businesses heavily in lost guest satisfaction, municipal emergency response fines, operational disruption, and reputation damage.

Real-world dispatch logs regularly detail building-wide dispatches triggered by minor localized issues, such as a hotel fire alarm triggered by burnt popcorn in Trumansburg NY or a hotel fire alarm caused by burnt food in Eagan MN. Modern system design helps prevent these localized incidents from escalating into unnecessary general building evacuations.

Supervisory Programming versus General Building Alarms

Addressable control panel logic allows engineers to separate local in-room events from general building alarms effectively:

• In-Room Supervisory Signals: When a single guest room detector senses smoke, the panel activates only that specific room’s sounder base while sending a supervisory alert to the front desk console. This gives staff time to inspect the room immediately without dumping the whole building unnecessarily.
• Cross-Zoning Logic (“Any 2” Rule): The panel initiates a full building-wide evacuation only if a second adjacent detector trips, if smoke spreads into public corridors, or if an automatic sprinkler waterflow switch opens.

Handling Guest Customer Service During a Hotel Fire Alarm Disruption

When a false alarm occurs, staff response dictates guest retention and online reviews. Night auditors and front-desk personnel must remain calm, helpful, and empathetic throughout the event. Poor staff communication during middle-of-the-night disruptions often turns minor inconveniences into severe customer service liabilities, as seen when a guest was threatened over a beeping smoke detector.

While full room refunds are rarely legally required for brief false alarms outside management control, proactive gestures—such as sincere verbal apologies, complimentary breakfast passes, late checkout options, or loyalty reward points—go a long way toward preserving brand reputation and guest loyalty.

Inspection, Testing, and Staff Evacuation Protocols

A comprehensive Inspection, Testing, and Maintenance (ITM) schedule ensures system readiness while fulfilling regulatory mandates. Ensure your building’s underlying infrastructure is up to standard by learning why you should upgrade old electrical outlets and switches.

Staff Emergency Response Training and Evacuation Workflows

Staff training must be executed routinely so night auditors, maintenance technicians, and day crews respond instinctively during emergencies:

1. Panel Verification: Staff must immediately check the FACP or remote annunciator panel to identify the exact active zone, room number, and device type.
2. Investigation Protocol: Dedicated staff members immediately verify the source area if the panel indicates a localized supervisory signal rather than a general alarm.
3. Dispatch Coordination: Confirm off-site central station signal delivery and communicate directly with arriving fire service units to brief emergency crews on the status.
4. Guest Evacuation Guidance: Direct guests down clear, unblocked emergency stairwells, ensuring elevators automatically recall to the ground level and lock out service for safety.

Upgrading Legacy Fire Protection in Older Hospitality Properties

Older hotel properties operating on conventional zone-based systems face higher maintenance costs, frequent troubleshooting, and an increased risk of false alarms. Retrofitting with addressable control panels allows properties to keep existing conduit while replacing end devices with smart multi-criteria sensors. Where running new field wiring is cost-prohibitive or structurally challenging, AHJ-approved commercial wireless fire alarm systems offer seamless retrofits with minimal disruption to guest room availability.

Frequently Asked Questions About Hotel Fire Alarm Protocols

How do hotel fire alarm systems prevent false building-wide evacuations?

Hotels utilize addressable FACP logic where in-room detectors trip localized sounder bases and supervisory panel alerts first. General building-wide alarms are typically reserved for common area corridor detectors, manual pull stations, sprinkler waterflow activations, or multi-detector cross-zoning verification.

Are hotels required to have low-frequency 520Hz sounders in guest rooms?

Yes. NFPA 72 mandates 520Hz low-frequency sounder bases for sleeping rooms across commercial hospitality occupancies. Research proves that 520Hz square-wave tones are significantly more effective at waking sleeping occupants, deep sleepers, and hearing-impaired individuals than traditional high-pitch alarms.

How often must hotel fire alarm systems undergo testing and maintenance?

Testing follows NFPA 72 schedules: visual panel checks occur weekly or monthly, functional tests on secondary batteries and pull stations are performed semiannually, and a full system evaluation—including sensitivity testing on every smoke detector—is required annually.

Keep Your Hotel Compliant and Safe

Protecting your guests, staff, and physical asset requires a commercial fire alarm system built on proper engineering, meticulous maintenance, and strict regulatory compliance. Partnering with qualified commercial electrical specialists ensures your facility operates seamlessly, protecting your guests from fire hazards while minimizing false alarm disruptions and operational downtime.

For professional electrical maintenance, commercial upgrades, and expert code compliance support tailored to your hospitality property, visit Performance Electrical Contracting Inc. today.

An electrical safety code sets the minimum rules for designing, installing, altering, and maintaining electrical systems safely. For property managers, the practical takeaway is simple: use the code adopted in your jurisdiction, confirm permit and plan-review requirements before work starts, and hire qualified electrical professionals to complete and document the installation.

These rules help reduce shock, electrocution, arc-fault, and fire risks while supporting reliable power for tenants, staff, and critical building systems.

In Ontario, the legally enforceable standard is the Ontario Electrical Safety Code (OESC). It combines the national Canadian Electrical Code, Part I (CSA C22.1:24), with Ontario-specific amendments under O. Reg. 164/99. In the United States, premises wiring generally follows the National Electrical Code (NEC), while utility lines and substations are commonly governed by the National Electrical Safety Code (NESC).

For commercial and multifamily properties, code compliance is not just an inspection issue. It can prevent downtime, avoid expensive rework, and make upgrades for EV charging, energy storage, and electrical capacity safer to manage.

Comparing Major Electrical Safety Code Standards: NEC vs. NESC vs. CEC

Understanding electrical standards starts with knowing where one jurisdiction ends and another begins. Electrical safety codes are not one-size-fits-all blueprints. Instead, model codes are developed by dedicated standards bodies and then legally enacted by provincial, state, or municipal authorities.

The scope of work determines which standard applies. Inside the boundaries of private property—from commercial office complexes and multifamily developments to industrial plants—rules focus on protecting occupants, maintenance workers, and property assets from internal electrical faults. Beyond the customer meter, power distribution involves entirely different operating voltages, physical configurations, and environmental stresses.

The table below outlines the core differences among the major electrical standards governing North American projects:

National Electrical Code (NFPA 70) for Premises Wiring

In the United States, the benchmark standard for building wiring is the National Electrical Code (NFPA 70). It governs everything from main service entrances and branch circuit distribution to emergency backup generators and modern microgrids. Incorporating the industry standards that power commercial electrical installation ensures that commercial structures can handle heavy power demands without risking catastrophic equipment failure or arcing events.

To assist engineers, master electricians, and building officials, the NFPA 70, National Electrical Code (NEC) Handbook (2026) pairs raw code language with in-depth commentary, practical calculation examples, and visual schematics. These explanations clarify the engineering logic behind safety mandates, which helps our crews streamline installations and avoid design oversights.

National Electrical Safety Code (NESC) for Utility Infrastructure

While the NEC stops at the service point, the National Electrical Safety Code (NESC), codified as ANSI Standard C2, takes over for the utility power grid. Published exclusively by the IEEE on a five-year revision cycle, the NESC has served as the foundational safety benchmark for utility providers for more than a century.

The NESC focuses on practical safeguarding for line technicians, utility personnel, and the public during the construction, operation, and maintenance of overhead lines, underground distribution, and high-voltage substations. Divided into four distinct parts—substations, overhead lines, underground lines, and work rules—it establishes mandatory clearances from trees, roadways, and buildings. Some states implement alternative frameworks; for example, California enforces its own utility rules through General Order 95 (overhead) and General Order 128 (underground) rather than adopting the NESC directly.

Canadian Electrical Code (CSA C22.1) and Regional Adoptions

In Canada, building safety begins with the Canadian Electrical Code (CE Code), Part I, published by the Canadian Standards Association. Originating in 1927, the CE Code is updated every three years by national volunteer technical committees. The 2024 release represents the standard’s 26th edition.

Provincial authorities take this baseline and enact it into law with regional adjustments. In Ontario, provincial oversight is established through O. Reg. 164/99 ELECTRICAL SAFETY CODE | ontario.ca, which legally mandates compliance for any act or omission involving the generation, transmission, distribution, retail, or use of electricity under the Electricity Act, 1998. The Electrical Safety Authority (ESA) administers these standards, publishing the official Ontario Electrical Safety Code – ESA along with specific Ontario Amendments to address regional technical priorities.

Technical Standards and Modern Safety Enhancements

Modern energy demands are reshaping electrical standards. The rapid adoption of distributed energy resources, high-capacity commercial vehicle chargers, and battery banks requires modern codes to address complex load profiles and continuous duty cycles.

Updating the Electrical Safety Code for Energy Storage and EV Systems

Recent code editions have transformed how systems accommodate high-draw clean technologies. In the CSA C22.1-2024 – Canadian Electrical Code, Part I (26th Edition), Safety Standard for Electrical Installations and the 29th edition of the OESC (which took regulatory effect on May 1, 2025), installation rules for residential Energy Storage Systems (ESS) underwent a complete rewrite.

Calculating power demands for homes with Electric Vehicle Supply Equipment (EVSE) has also been simplified:

• Elimination of Table 38: The legacy calculation matrix was removed in favor of a straightforward 100% demand factor applied to EV charging loads unless managed by smart systems.
• Energy Management Systems (EMS): Codes formally recognize broad energy management systems that monitor building usage in real time, automatically shedding or modulating EVSE loads to keep total demand within safe panel ratings.
• Service Capacity Labelling: Installers must clearly label the maximum calculated residential load on service equipment to prevent future contractors or homeowners from inadvertently overloading upstream feeders.
• Harmonized Conductor Metrics: Modern editions officially recognize conductor sizing in square millimeters ($text{mm}^2$) alongside conventional American Wire Gauge (AWG) and thousand circular mils ($text{kcmil}$) designations.

Critical Protections: Arc Fault Clearing and GFCI Mandates

Shock prevention and fault mitigation remain central to modern code updates. Recent national and provincial codes introduced major updates to limit arc energy and protect personnel:

1. Arcing Fault Clearing Times: Section 2 of the Canadian Electrical Code requires documented clearing-time reduction methods for overcurrent protective devices rated 1200 A or higher. Reducing fault duration significantly lowers available arc-flash incident energy, safeguarding service electricians during routine switchgear maintenance.
2. Public Venue & Temporary Power: Power distribution across outdoor carnivals, midways, festivals, and temporary event tents now requires Ground Fault Circuit Interrupter (GFCI) protection across portable generator connections, extension cords, and temporary branch circuits.
3. Conductive Swimming Pool & Spa Bonding: Bonding requirements for pools, hot tubs, and hydromassage installations have been updated to ensure all conductive structural components, pumps, and perimeter surfaces are bonded to a common ground grid, preventing stray voltage gradients.
4. General Premises Safety: Maintaining standard device layouts—such as aligning with standard light switch height requirements explained by code—ensures consistent, accessible, and hazard-free operation across residential and commercial properties.

Compliance, Plan Review, and Enforcement Protocols

A comprehensive code standard is only as effective as its job-site enforcement. Ensuring safety across commercial developments requires careful coordination among design engineers, certified electrical contractors, and local inspection authorities.

Plan Review Thresholds and Permitting Requirements

Complex installations require an engineering plan review before field work begins. Under the Ontario Electrical Safety Code, Rule 2-010 establishes plan submission requirements for high-capacity services and stand-alone power generation.

Following an official Director’s Order, the Plan Review threshold under Rule 2-010 increases from 10 kW to 12 kW on July 6, 2026. This adjustment streamlines small-scale renewable and backup generator projects while maintaining engineering oversight for larger commercial arrays. For building managers and developers, navigating electrical code compliance inspection rules and permits early in the design phase prevents stop-work orders and costly mid-construction redesigns.

When purchasing code documents for project teams, professionals can select physical copies ($243 USD), downloadable PDFs ($217 USD), or 3-year digital subscriptions via the CSA Advantage platform. These packages often bundle companion technical bulletins and index updates through May 2026.

Enforcement Officers and Certification Under the Electrical Safety Code

Field inspections are conducted by authorized safety codes officers who enforce technical compliance. In jurisdictions governed under Safety Codes Council frameworks, such as Alberta, becoming a certified electrical safety codes officer requires extensive trade or technical experience:

• Journeyperson Pathway: Requires recognized journeyperson electrician certification plus a minimum of 6 years of verified post-certification electrical field experience focusing on wiring installations.
• Engineering Pathway: Requires an electrical engineering degree or technologist diploma along with 8 years of relevant electrical experience, including hands-on job-site installation practice.
• Mandatory Training: Candidates must complete core curriculum courses, including Introduction to the Safety Codes System ($400), Written Communications for Safety Codes Officers ($325), Professional Communication Skills ($250), Electrical Safety Codes Officer Basics ($375), and specific CE Code courses ($375).
• Continuing Professional Development: Officers must complete 30 continuing education credits over a 3-year cycle to maintain active inspection credentials and stay current with provincial STANDATA variance bulletins.

Frequently Asked Questions About Electrical Codes

What installations are typically exempt from building electrical safety codes?

Building safety codes like the NEC, CE Code, and OESC cover premises wiring, but specific industrial, transportation, and utility systems fall outside their statutory scope:

• Underground mine workings and specialized extraction machinery.
• Utility-owned generation, transmission, and communication distribution networks.
• Electric railway motive power systems, catenary lines, and railway signaling circuits.
• Aircraft electrical systems subject to national aviation administration standards.
• Marine vessels and watercraft regulated by maritime transport agencies (unless docked and connected to shore power for extended periods, such as exceeding 5 consecutive months under CE Code rules).

How often are national electrical codes revised and updated?

Building electrical codes—including the National Electrical Code (NEC), Canadian Electrical Code (CSA C22.1), and Ontario Electrical Safety Code (OESC)—are revised on a regular three-year cycle. This schedule allows technical committees to evaluate emerging technologies, study field incident reports, and update installation safety standards. In contrast, the utility-focused National Electrical Safety Code (NESC) updates on a five-year cycle. When urgent safety risks arise between publication cycles, governing bodies issue interim updates, such as Tentative Interim Amendments (TIAs) or provincial Director’s Orders.

What are the primary consequences of non-compliance with electrical safety standards?

Non-compliance with electrical safety codes creates serious life-safety, operational, and financial risks:

• Safety Hazards: Improperly sized conductors, missing bonding paths, or absent GFCI/AFCI devices significantly increase the likelihood of electrical shocks, arc flashes, and structural fires.
• Permit & Utility Delays: Municipal and provincial inspectors will fail non-compliant work, resulting in failed inspection reports and refusal by local utilities to energize the service.
• Financial & Legal Exposure: Statutory fines can be levied by regional safety authorities against property owners and unlicensed contractors. Furthermore, non-compliant installations can lead insurers to deny property damage or liability claims following an electrical fire.

Conclusion

Electrical safety codes provide the foundational engineering standards that protect building occupants, field personnel, and physical assets from electrical hazards. From calculating EV charging loads and deploying battery storage systems to maintaining proper clearances and arc fault protections, staying aligned with the latest national and regional standards is essential for every property owner, developer, and facility manager.

At Performance Electrical Contracting Inc., we bring decades of hands-on technical expertise to commercial, multifamily, hospitality, infrastructure, and residential projects throughout Jacksonville, FL, and the Southeast U.S. As a partnership-focused, pre-qualified contractor, our team delivers value-driven, fully compliant electrical solutions on time and on budget. To protect your investment and avoid costly installation pitfalls, review our breakdown of common electrical code violations in Florida and how to avoid them or reach out to our team today to discuss your next project.

Reliable electrical repairs require promptly recognizing warning signs, safely isolating circuit power at the breaker, and engaging licensed contractors for complex distribution and panel faults. Identifying physical symptoms early prevents dangerous arcing, component degradation, and structural fires.

Electrical infrastructure rarely fails without offering a few distinct sensory warnings. Because current moving through wires generates thermal energy, any disruption in conductivity produces heat, mechanical vibration, or ionization of surrounding air.

When an electrical circuit encounters resistance—often due to loose terminal screws, corroded copper conductors, or undersized wiring—energy transforms directly into heat. If a wall switch plate or outlet cover feels noticeably warm to the touch, or if you spot yellowing, browning, or scorched plastic around plug slots, stop using that receptacle immediately.

Similarly, an audible buzzing, humming, or crackling noise from a panelboard or wall switch indicates micro-arcing. Electricity is actively leaping across microscopic air gaps between loose metal contacts or passing through a failing mechanical breaker.

You should treat the following electrical warning signs as critical hazards requiring prompt disconnection and assessment:

• Persistent burning smells: An acrid, fishy, or melting plastic odor around receptacles, switches, or service panels points directly to overheated insulation.
• Visible sparks or flashes: Plug insertion should never produce heavy sparks; visible arcing indicates loose internal contact jaws or an immediate short circuit.
• Physical looseness of plugs: Receptacles that fail to grip plug prongs firmly generate high contact resistance, creating concentrated hotspots inside wall cavities.
• Ungrounded two-prong receptacles: Aging outlets lacking a dedicated equipment grounding conductor leave modern electronics vulnerable and increase personal shock risks.
• Localized or room-specific blackouts: When a single area loses power while the rest of the building runs normally, an upstream branch failure or compromised junction is often responsible.

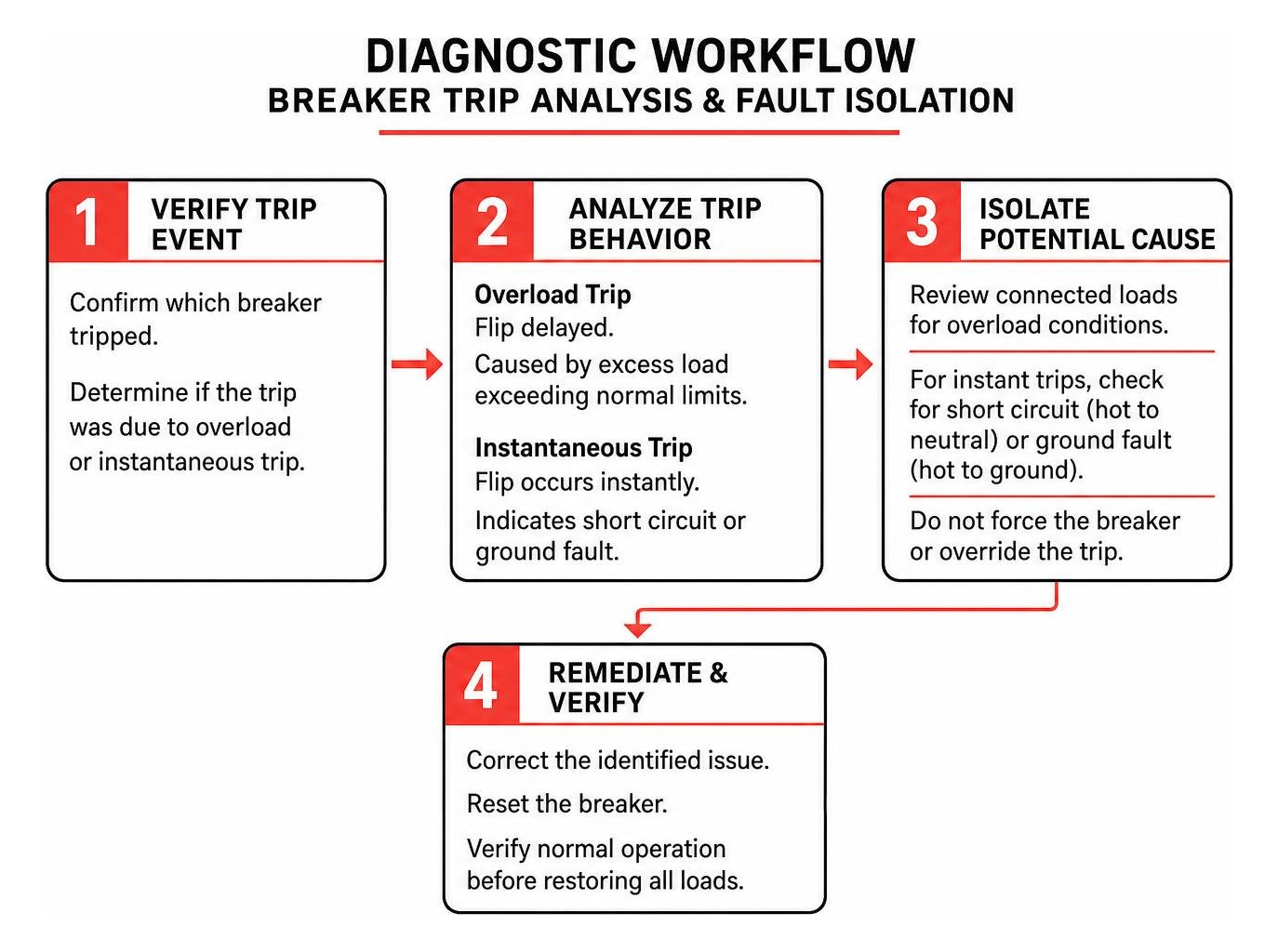

Diagnosing Persistent Circuit Breaker Trips and Power Failures

A circuit breaker serves as an automated safety valve designed to cut electrical current before wiring reaches temperatures that melt insulation. Understanding why a breaker opens requires looking at branch circuit physics.

In residential and light commercial settings, branch circuits operate at 120 volts with either 15-amp or 20-amp overcurrent protection. Standard electrical engineering practices limit continuous loads—appliances operating for three hours or more—to 80% of maximum circuit capacity. That translates to 1,440 watts on a 15-amp circuit (1,800 watts total maximum) and 1,920 watts on a 20-amp line (2,400 watts total maximum).

When high-wattage equipment like a 1,000-watt appliance runs alongside motor compressors drawing substantial inrush currents, total draw can easily exceed normal limits, resulting in an overload trip.

However, if a breaker trips instantly upon resetting, you are not dealing with a simple overload. An instantaneous trip signals an active short circuit (a hot conductor contacting a neutral conductor) or a ground fault (a hot conductor touching a grounded metal frame or bare copper ground wire). Forcing a breaker handle to stay on when it refuses to reset overrides its internal trip-free mechanism and introduces severe electrical fire hazards.

Unsafe Switches and Outlets Needing Immediate Electrical Repairs

Receptacles endure substantial mechanical wear every time cords are plugged in and removed. Over years of operation, internal brass and copper contact blades lose their mechanical spring tension. When prongs sit loosely inside an outlet, the reduced surface contact area forces current through a bottleneck, generating localized thermal spikes that degrade surrounding insulation.

In buildings constructed between the mid-1960s and late 1970s, branch circuits often contain solid aluminum wiring. Aluminum expands and contracts at significantly higher rates than copper under electrical load cycles. This phenomenon, known as thermal creep, slowly loosens terminal connections over time, introducing oxidation and high resistance.

Similarly, Ground-Fault Circuit Interrupter (GFCI) outlets contain sensitive internal sensing electronics that degrade after years of line surges. If pressing the built-in test button fails to cut power, or if the unit refuses to latch during a reset, internal ground-fault protection is compromised.

Essential Safety Protocols and DIY vs. Professional Boundaries

Safe electrical troubleshooting demands strict procedural discipline. Electricity flows along all available conductive paths to reach ground, meaning human contact with an energized conductor turns the body into a path for dangerous current.

When addressing simple maintenance tasks, safety protocols start by cutting circuit power at the main distribution panel. Electricians rely on visual lock-out/tag-out practices: applying a physical lockout clasp or placing brightly colored electrical tape with a clear warning notice over the tripped or opened breaker handle to prevent accidental re-energization by other building occupants.

Never trust a wall switch or a labeled breaker directory alone. Always verify de-energization using a certified non-contact voltage tester or a digital multimeter calibrated for AC voltage. Test the meter on a known live circuit first to ensure the tool operates correctly, test the target circuit wires, and re-test the live source afterward.

Basic DIY Maintenance and Safe Receptacle Replacement

Property owners equipped with proper tools can safely replace worn standard receptacles, provided circuit de-energization is verified. Always use insulated hand tools rated for electrical work and wear safety glasses to guard against debris inside electrical boxes.

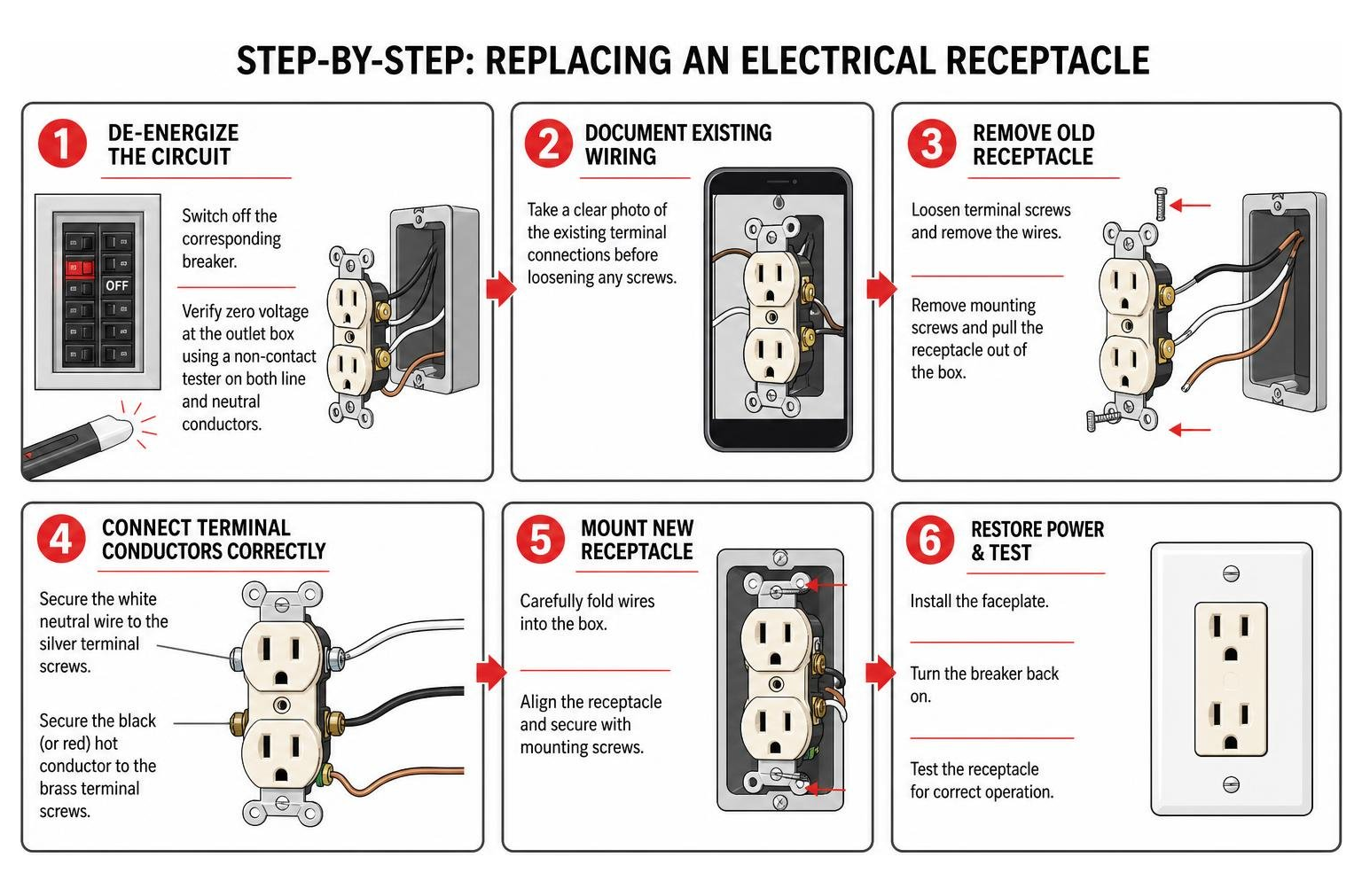

To replace an outlet safely:

1. De-energize the circuit: Switch off the corresponding breaker and verify zero voltage at the outlet box using a non-contact tester on both line and neutral conductors.
2. Document existing wiring: Take a clear photo of the existing terminal connections before loosening any screws.
3. Connect terminal conductors correctly: Secure the white neutral wire to the silver terminal screws and the black (or red) hot conductor to the brass terminal screws.
4. Loop conductors clockwise: Form exposed conductor ends into a 3/4-turn loop and hook them clockwise around terminal screws. As the screw tightens, the rotational force pulls the wire loop securely closed rather than pushing it outward.
5. Establish grounding continuity: Connect the bare copper or green insulated equipment grounding conductor firmly to the green ground screw on the receptacle chassis, as well as to the metal junction box if applicable.
6. Reinstall cleanly: Fold insulated wires accordion-style into the junction box to prevent bare copper from pinching against metal box edges or mounting screws.

When to Call a Certified Contractor for Complex Electrical Repairs

While like-for-like receptacle replacement is manageable for experienced property owners, high-voltage components and main service distribution require an experienced professional. Specialized diagnostic tools, including thermal imaging cameras and insulation resistance testers, are essential for identifying hidden faults behind finished walls and within distribution switchgear.

A master electrician or licensed electrical contractor should always be hired for:

• Replacing or reconfiguring main electrical panels, subpanels, and busbar assemblies.
• Diagnosing recurring neutral dropouts, phase imbalances, or high harmonic distortions.
• Remediating vintage aluminum branch wiring using specialized mechanical connectors.
• Sizing and running dedicated 240-volt appliance circuits, commercial equipment drops, and EV charging infrastructure.
• Restoring electrical service after structural fires, flood inundation, or major storms.
• Navigating Electrical Code Compliance Inspection Rules and Permits during extensive property renovations or commercial tenant buildouts.

Post-Storm Diagnostics and Electrical Service Alterations

Severe weather events introduce massive physical stresses to overhead and underground electrical infrastructure. High-velocity winds, falling tree limbs, and driving rain commonly tear overhead utility lines directly away from building exteriors.

When inspecting exterior storm damage, safety depends on understanding the division between utility equipment and customer-owned infrastructure. The utility company owns and repairs the overhead service drop wires running from the street transformer to the building connection point. However, the building owner is financially and legally responsible for the weatherhead, the rigid conduit service mast, structural guy-wire supports, the meter socket base, and the main entrance conductors leading indoors.

If winds bend the exterior service mast, the conduit must be rebuilt and secured with dual guy-wires anchored into solid wall studs or structural roof rafters to withstand future line tension.

Navigating Permits, IRC Codes, and Service Alterations

Building codes establish a clear legal distinction between basic maintenance repairs and service alterations. Under the International Residential Code (IRC) and National Electrical Code (NEC), simple like-for-like repairs—such as swapping a single standard 15-amp branch circuit breaker with an identical unit in the exact same panel slot—generally do not require municipal permits.

However, an electrical service alteration—such as upgrading service capacity from 100 amps to 200 amps or replacing an entire distribution panelboard—legally requires a permit pulled by a licensed Master Electrician.

Service alterations frequently trigger secondary life-safety upgrades under modern building codes:

• Interconnected smoke alarms: Hardwired smoke alarms powered directly by the building’s electrical system with battery backups must be installed in every sleeping room, immediately outside sleeping areas, and on every habitable story.
• Carbon monoxide protection: Interconnected CO detectors must be installed outside sleeping areas and on levels containing fuel-burning appliances or attached garages.
• GFCI and AFCI retrofits: Kitchen countertop outlets, bathrooms, laundry rooms, and exterior receptacles must be brought up to modern GFCI protection standards.

Critically, when a service panel replacement is undertaken solely to replace historically hazardous or damaged panel brands, building departments generally do not mandate full-house rewiring, provided the existing branch circuits remain safe and functional.

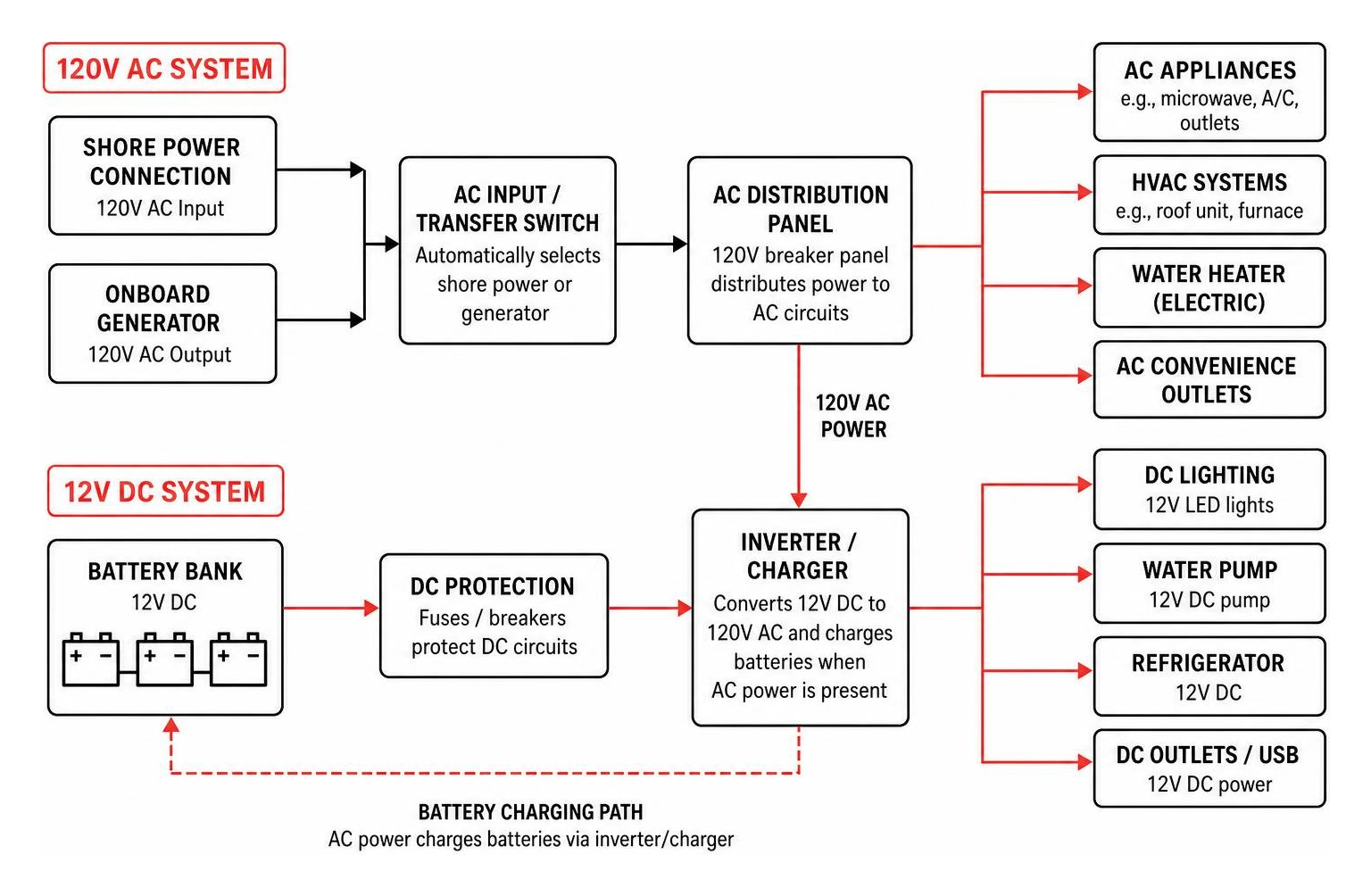

Specialized Applications: RV Dual-Voltage and Hospitality Systems

Electrical systems extend beyond traditional residential drywall framing. Recreational vehicles (RVs) and mobile commercial units operate hybrid electrical systems combining low-voltage 12-volt Direct Current (DC) battery systems with 120-volt Alternating Current (AC) distribution fed through onboard inverters, generators, or shore power drops.

Mobile systems suffer unique failure modes caused by continuous road vibration, which slowly works terminal screws and wirenuts loose. DC converter failures, damaged inverter transfer switches, and deep battery discharge cycles frequently disrupt power to appliances and water pumps.

In commercial environments, understanding how to choose hospitality electrical services without shocking your budget ensures continuous guest satisfaction and life-safety system reliability. Commercial properties benefit from structured electrical maintenance plans that schedule regular thermal imaging scans of switchgear, load-balance three-phase circuits, and inspect central emergency lighting systems before costly outages occur.

Frequently Asked Questions About Common Electrical Issues

Why do my lights dim or flicker when major appliances cycle on?

When large inductive loads—such as an air conditioner compressor, commercial refrigeration unit, or heat pump—cycle on, their electric motors require an initial surge of current known as inrush current or locked-rotor amperage. This startup surge can draw four to six times the appliance’s normal operating current for several fractions of a second.

This brief, heavy current draw creates a momentary voltage drop across the electrical system. If lights dim briefly (for less than a second) and immediately return to full brightness, this is generally a normal physical response to a heavy motor starting up on a shared feeder.

However, if light fixtures flicker continuously, oscillate in brightness, or dim across multiple independent rooms, it points to systemic issues:

• An undersized main electrical service panel unable to accommodate modern electrical demands.
• A loose or corroding neutral conductor connection at the service mast or main panelboard.
• High electrical resistance along older branch circuit splices.
• Imbalanced phase loading across a split-phase 120/240-volt or three-phase distribution system.

What is the safest way to reset a circuit breaker that will not stay on?

If a circuit breaker trips and immediately snaps back to the middle trip position when you attempt to reset it, do not force the handle into the “ON” position. Breakers contain internal mechanical trip levers designed to open the circuit even if the exterior switch handle is held down.

To safely troubleshoot a tripped circuit breaker:

1. Unplug downstream devices: Disconnect high-draw appliances, electronics, and lighting fixtures connected to the dead circuit.
2. Execute a complete reset cycle: Push the breaker handle firmly into the “OFF” position until you feel and hear a distinct mechanical click. Then, push the switch smoothly to the “ON” position.
3. Isolate an overload vs. a fault: If the breaker holds with appliances disconnected, plug equipment back in one at a time. If the breaker trips immediately upon connecting a specific appliance, that device is internally shorted.
4. Identify wiring faults: If the breaker trips instantly with nothing plugged in, a short circuit or ground fault exists inside the branch wiring, a switch box, or the breaker itself. Leave the breaker in the “OFF” position and call a licensed professional.

Are electrical protection plans and service warranties worth the cost?

Home and commercial electrical protection plans provide recurring repair coverage for standard wear-and-tear component failures, typically costing a small monthly fee through utility bills or third-party home warranty providers.

These programs can offset out-of-pocket costs for minor repairs, such as replacing failed GFCI receptacles, wall switches, and standard branch circuit breakers. However, property owners should review program terms carefully.

Many standard protection plans impose strict annual claim caps (such as $500 per calendar year), enforce mandatory waiting periods (often four to six weeks post-enrollment) before claims can be filed, and deduct mandatory municipal permitting and inspection fees directly from the total payout allowance.

Furthermore, full panel replacements, pre-existing wiring defects, vintage aluminum rewiring, and major storm damage repairs are commonly excluded. For comprehensive risk mitigation, a direct relationship with a trusted electrical contractor offering transparent estimates and preventative maintenance reviews is far more reliable.

Reliable Infrastructure Begins With Code-Compliant Electrical Care

A building’s electrical system serves as its central nervous system, quietly powering essential equipment, lighting, climate controls, and life-safety devices every minute of the day. Neglecting early warning signs—such as a warm faceplate, an intermittent flicker, or a humming breaker—transforms minor, inexpensive maintenance tasks into significant safety and operational hazards.

Whether you are managing a commercial facility, overseeing a multifamily property, or maintaining a home, prioritize safety above all else. For fast, code-compliant, and durable power solutions across Jacksonville, FL and the Southeast U.S., partner with our experienced team for trusted electrical services that keep your property running smoothly and securely.

At its core, the National Electrical Code establishes the absolute minimum safety benchmark for electrical installations across the United States. Sponsored by the National Fire Protection Association (NFPA) since 1911 and approved by the American National Standards Institute (ANSI), NFPA 70 is recognized worldwide as the definitive standard for safeguarding people and property from electrical hazards.

When the NFPA first began sponsoring the standard over a century ago, roughly 25% of American homes had electricity. Today, modern homes and commercial facilities carry massive electrical demands, powering everything from complex building management automation to banks of electric vehicle chargers.

To keep pace with this rapid evolution, the standard operates on a strict three-year revision cycle. The development process relies on an open, consensus-driven framework overseen by a Technical Correlating Committee and 18 specialized Code-Making Panels (historically 19 panels). During the 2014 development cycle alone, technical committees acted on 3,745 code change proposals and 1,625 public comments, proving how active and democratic this safety process is. For an in-depth breakdown of these evolving standards, the NFPA 70, National Electrical Code (NEC) Handbook (2026) provides complete commentary and practical guidance alongside the regulatory language.

Core Chapters and Structure of the Electrical Code

The NEC is systematically arranged into an introduction, nine core chapters, and several informative annexes. Understanding this roadmap makes finding specific compliance requirements straightforward:

• Article 90 (Introduction): Outlines the purpose, scope, and enforcement principles of the code, emphasizing that it is designed for safety rather than as a design manual for untrained individuals.
• Chapter 1 (General): Covers broad foundational rules, including definitions (Article 100) and general requirements for electrical installations, working spaces, and equipment examination (Article 110).
• Chapter 2 (Wiring and Protection): Details requirements for grounded conductors, branch circuits, feeders, service entrance equipment, overcurrent protection, surge protection, and grounding and bonding (Article 250).
• Chapter 3 (Wiring Methods and Materials): Regulates physical wiring, conductor types, cable assemblies (such as NM, MC, and TC cables), raceways, conduit bodies, and junction boxes.
• Chapter 4 (Equipment for General Use): Governs everyday equipment, including switches, receptacles, panelboards, luminaires, motors, air conditioning equipment, transformers, and stationary battery banks.
• Chapter 5 (Special Occupancies): Focuses on hazardous (classified) areas where flammable gases or dust exist, health care facilities, commercial garages, marinas, and agricultural buildings.
• Chapter 6 (Special Equipment): Addresses specialized installations such as electric signs, elevators, electric vehicle power transfer systems, solar photovoltaic (PV) arrays, and energy storage systems.
• Chapter 7 (Special Conditions): Covers emergency systems, legally required standby systems, critical operations power systems (COPS), and Class 1, 2, 3, and 4 power-limited circuits.
• Chapter 8 (Communications Systems): Independent requirements for radio, television, telephone, broadband, and network cabling systems.
• Chapter 9 (Tables): Practical mathematical tables for conductor dimensions, conduit fill percentages, and cable properties.
• Informative Annexes (A through K): Reference materials providing application formulas, conduit fill tables, torque specifications (UL 486A-486B), administrative enforcement guidelines, and ADA accessibility metrics.

The standard also establishes clear dividing lines for operating voltages, creating distinct rules for low-voltage systems, systems under 1,000 volts nominal, and high-voltage systems exceeding 1,000 volts AC or 1,500 volts DC.

Application Across Residential, Commercial, and Industrial Occupancies

The scope of the code covers diverse building environments, adapting safety rules to match specific operational risks:

• Residential Dwellings: Focuses heavily on personal life safety through child protection, ground-fault reduction in wet areas, arc-fault fire mitigation in living spaces, and exterior emergency service disconnects.
• Commercial Facilities: Emphasizes continuous power reliability, emergency egress lighting, robust branch-circuit sizing, dedicated equipment working clearances, and selective coordination for overcurrent protective devices.
• Industrial Infrastructure: Addresses high-load motor circuits, variable frequency drives, heavy machinery transformers, classified hazardous dust or chemical areas, and large-scale power distribution systems.
• Agricultural and Specialized Occupancies: Addresses unique environmental challenges, such as corrosive livestock confinement spaces, stray voltage mitigation, and equipotential planes around livestock waterers.

Essential Safety Technologies Mandated by Standardized Rules

Over several decades, safety data has driven the inclusion of automatic protective technologies. Rather than relying solely on human behavior to avoid hazards, the code mandates built-in safety devices that continuously monitor circuits and interrupt dangerous faults automatically.

Tamper-Resistant Receptacles (TRRs)

Standard electrical outlets present a severe risk to young children. More than 2,400 children—nearly 7 children each day in the United States—are treated in hospital emergency rooms for electrical injuries caused by inserting everyday objects such as keys, paperclips, or hairpins into electrical outlets.

A landmark study by Temple University’s Biokinetics Laboratory revealed that 100% of children aged 2 to 4 years were able to remove conventional plastic outlet caps in less than ten seconds. In contrast, Tamper-Resistant Receptacles feature built-in, spring-loaded safety shutters. These shutters block foreign objects from contacting live components unless two identical prongs are inserted simultaneously with equal pressure. Installing TRRs throughout a newly built single-family home adds less than $50 to total construction costs while offering permanent, passive protection.

Arc-Fault and Ground-Fault Circuit Interrupters (AFCIs and GFCIs)

AFCIs and GFCIs address two fundamentally different electrical hazards:

• AFCIs Protect Against Fire: Damaged wiring inside walls, pinched cords behind furniture, and loose screw terminals can generate high-temperature electrical arcing capable of igniting nearby wood framing or drywall insulation. The U.S. Consumer Product Safety Commission (CPSC) estimates that AFCIs could prevent roughly 50% of the electrical fires that occur every year.
• GFCIs Protect Against Electrocution: When electricity strays from its normal conductor path—such as through water or a human body to ground—GFCIs cut power in a fraction of a second. Since their introduction to the NEC in the early 1970s, GFCIs have helped cut the number of residential electrocutions in half.

Recent code cycles have continuously expanded GFCI protection beyond standard bathroom and kitchen receptacles to include hardwired and cord-and-plug-connected residential appliances, including dishwashers, electric ranges, microwave ovens, clothes dryers, and outdoor HVAC condenser units.

How States Adopt and Enforce Electrical Safety Standards

The NEC does not automatically become legally binding nationwide upon publication. Instead, it must be enacted into law by state legislatures, county commissions, or municipal city councils. The local regulatory body—typically led by a designated building official known as the Authority Having Jurisdiction (AHJ)—is responsible for reviewing plans, issuing permits, and carrying out field inspections.

When projects involve complex installations or modern upgrades, navigating electrical code compliance inspection rules and permits requires understanding which specific code edition is in effect on the exact day the permit application is filed. AHJs have the authority to interpret rules, approve specialized equipment, and issue stop-work orders if work diverges from approved plans or mandated safety codes.

State-Specific Adoptions: California and Minnesota Case Studies

Because states maintain sovereignty over building safety laws, code adoption cycles and local amendments vary widely across jurisdictions:

• California: California integrates electrical standards into Title 24, Part 3 of the California Code of Regulations, known as the California Electrical Code (CEC). The 2025 CEC uses the 2023 edition of NFPA 70 as its base model code, layering on extensive state-specific amendments for energy efficiency, electric vehicle charging infrastructure, and seismic bracing.
• Minnesota: Minnesota adopts national safety standards through Chapter 1315 of the Minnesota State Building Code. Demonstrating one of the most proactive adoption timelines in the country, the Minnesota Board of Electricity adopted the 2026 National Electrical Code with a mandatory effective date of August 17, 2026. Under Minnesota administrative rules, any electrical permit filed on or after August 17, 2026, must strictly comply with the 2026 NEC, and state licensing examinations transition to the 2026 curriculum starting September 8, 2026.

Key Updates Across Recent Three-Year Revision Cycles

The continuous revision of the NEC ensures electrical design requirements reflect modern construction methods, renewable power generation, and distributed energy systems. Comparing historical editions highlights how rapidly these standards evolve.

Professionals referencing prior revision benchmarks can consult the National Electrical Code, 2023 Edition, Spiralbound with Tabs (September 27, 2022) or the historic baseline in the NFPA 70, National Electrical Code (NEC) (2020). Between the 2023 and 2029 cycles, Code-Making Panels are completing a multi-edition restructuring that systematically relocates medium- and high-voltage standards into dedicated, unified sections.

Modern Power Systems, Energy Storage, and Emerging Technology

Recent NEC updates actively accommodate new electrical technologies and power distribution models:

• Class 4 Fault-Managed Power Systems (Article 726): Known commercially as “digital electricity,” Class 4 systems transmit high-voltage power over small-gauge conductors by breaking electricity into discrete, monitored energy packets. If the system detects a human touch or a short circuit, it halts power delivery in milliseconds, preventing shock and fire hazards.
• Energy Storage Systems (Article 706): Clear distinctions now separate simple stationary battery banks (Article 480) from complete, integrated Energy Storage Systems (ESS), mandating factory listings, emergency shutdown controls, and spatial separation from egress corridors.
• Bidirectional EV Charging (Article 625): Standardizes vehicle-to-home (V2H) and vehicle-to-grid (V2G) systems, allowing electric vehicles to export power directly to building electrical panels during utility blackouts without backfeeding into dangerous grid faults.
• Commercial Extraction Facilities (Article 512): Provides dedicated safety rules for commercial cannabis oil extraction equipment operating with volatile, flammable chemical solvents.

Tools and Resources for Electrical Code Compliance

Staying current with shifting regional and national mandates requires specialized professional resources. Electrical contractors, engineers, and facility managers rely on tools such as the NFPA 70, National Electrical Code (NEC) Handbook (2023), which incorporates full-color diagrams, practical engineering calculations, and code commentary.

In addition to physical handbooks, digital reference suites like NFPA LiNK give field electricians immediate mobile access to cross-referenced code articles, historical errata sheets, and Tentative Interim Amendments (TIAs). Continuous professional education through industry trade associations ensures installation crews apply current standards accurately on every job site.

Frequently Asked Questions About Electrical Safety Standards

Is the NEC a Federal Law in the United States?

No. The National Electrical Code is not a direct federal statute. The federal government does not enforce building electrical codes across private residential or commercial properties. Instead, the NEC serves as a model code developed by private industry consensus under the NFPA and ANSI. It acquires full legal force only after a state legislature, county commission, or city council formally votes to adopt it into statutory law. Once incorporated, local electrical inspectors and AHJs possess the legal authority to enforce its rules and mandate full compliance before issuing Certificates of Occupancy.

Why Is the Code Revised Every Three Years?

The three-year revision cadence balances regulatory consistency with the need to address emerging electrical technologies and safety discoveries. Consumer electronics, renewable generation, energy storage systems, and industrial automation evolve far faster than traditional ten-year legislative update cycles. The triennial revision process gives electrical contractors, product manufacturers, fire marshals, and testing laboratories a regular forum to propose data-backed updates, eliminate newly identified hazards, and ensure electrical installations remain safe as power requirements change.

What Is the Difference Between an AFCI and a GFCI?

While both are automated circuit interrupters, they monitor entirely different electrical phenomena to protect against distinct hazards:

• AFCI (Arc-Fault Circuit Interrupter): Built to prevent structural fires. It uses internal digital signal processors to constantly monitor the alternating current waveform for the unique electrical “noise” caused by erratic arcing across cracked, pinched, or deteriorated insulation.
• GFCI (Ground-Fault Circuit Interrupter): Built to protect people from fatal electric shocks. It measures the balance of current moving out on the hot wire and returning on the neutral wire. If as little as 4 to 6 milliamperes of current leaks toward an unintended path—such as through water or a person—the GFCI opens the circuit within 25 to 40 milliseconds.

Conclusion

Electrical safety codes are practical, life-saving standards shaped by decades of real-world experience, engineering advances, and forensic fire research. From the life-saving shutters on tamper-resistant outlets to sophisticated fault-managed power architectures, strict code compliance protects building occupants, preserves real estate value, and prevents avoidable equipment failures.

Maintaining safety across complex electrical systems requires experienced, fully licensed trade professionals. At Performance Electrical Contracting Inc., our team brings decades of field-tested experience to commercial, multifamily, hospitality, infrastructure, and residential projects throughout Jacksonville, FL, and across the Southeast. We work closely with general contractors, facility directors, and property managers to deliver on-time, fully compliant installations designed for reliable long-term performance.

To help identify and correct wiring risks in your existing facilities, explore our practical guide on common electrical code violations in Florida and how to avoid them.

When our team at Performance Electrical Contracting Inc. inspects residential electrical systems across Florida, we regularly encounter hazards hidden behind closed panel doors and inside wall cavities. Many of these issues stems from a mix of aging equipment, well-intentioned DIY work, and environmental wear. Below are the most frequent violations cited during official building inspections and real estate evaluations.

Outdated or Overcrowded Electrical Panels (FPE, Zinsco, and Double-Tapping)

Electrical panels are the heart of your home’s distribution system, but thousands of Florida homes still rely on outdated hardware that fails to meet modern safety thresholds.

• Federal Pacific Electric (FPE) Stab-Lok & Zinsco Panels: Manufactured primarily between the 1950s and 1980s, these panels have documented failure rates. FPE breakers frequently fail to trip during an overload or short circuit, while Zinsco breaker bus bars are notorious for melting and fusing together. Both present severe fire risks and lead to instant rejections during insurance 4-point inspections.
• Double-Tapped Breakers: Double-tapping occurs when an installer inserts two circuit wires into a single breaker terminal terminal that is only rated for one conductor. In Florida garages, where summer temperatures routinely exceed 100°F, continuous thermal expansion and contraction loosen these cramped connections, causing dangerous electrical arcing.
• Clearance Violations: The Florida Building Code (FBC) and National Electrical Code (NEC) mandate a clear working space around electrical panels measuring at least 36 inches deep, 30 inches wide, and 6.5 feet of vertical headroom. Stacking hurricane shutters, storage bins, or lawn equipment in front of your main breaker box violates code and prevents rapid power shutdown during an emergency.

If you suspect your electrical panel is overdue for an upgrade, review our guide on How to Tell When Your Home Needs an Electrical Safety Inspection.

Missing or Non-Compliant GFCI and AFCI Protection

The distinction between Ground-Fault Circuit Interrupter (GFCI) and Arc-Fault Circuit Interrupter (AFCI) devices is one of the most misunderstood areas of residential code compliance:

• GFCI Protection (NEC Article 210.8): GFCIs prevent severe electrical shock by monitoring the balance of current between hot and neutral wires. Under UL 943 standards, if a current leak exceeding 5 milliamperes (mA) is detected, the device cuts off power within approximately 1/40th of a second. Current Florida code requires GFCI protection on 15A and 20A, 125V receptacles in:
  • Bathrooms and kitchens (specifically all countertop receptacles within 6 feet of a sink)
  • Garages, unfinished basements, and crawl spaces
  • Outdoor locations and boathouses
  • Laundry rooms and wet bars
  • Receptacles within 20 feet of a swimming pool, spa, or hot tub edge (NEC Article 680)
• AFCI Protection (NEC Article 210.12): While GFCIs protect people from electrocution, AFCIs protect structures from fires caused by arcing faults (damaged insulation, pinched wires, or loose connections). Under Florida’s adoption of recent NEC standards, AFCI protection is mandatory for branch circuits supplying outlets and devices in bedrooms, living rooms, dining rooms, family rooms, sunrooms, hallways, and closets.

To learn more about current safety mandates, read the statutory framework for AFCI and GFCI Protection Requirements in Florida and check out our detailed guide on Why You Should Upgrade Old Electrical Outlets and Switches.

Damaged Grounding Systems, PVC Plumbing Repairs, and Salt-Air Corrosion

Florida experiences more cloud-to-ground lightning strikes per square mile than any other state in the nation. This constant atmospheric activity places extraordinary demands on residential grounding and bonding infrastructure.

A common violation occurs when homeowners or plumbers repair old metal water lines with non-conductive PVC pipe. In many older Florida homes, the underground metallic water pipe served as a primary grounding electrode. Replacing a section of copper pipe with PVC severs this continuous metallic path, leaving the electrical system without a safe path to dissipate fault currents or lightning surges.

Furthermore, in coastal regions, airborne salt spray corrodes ground rods (which must measure at least 1/2 inch in diameter and 8 feet in length), ground clamps, and service entrance conductors. When corrosion destroys these bonds, high voltages can energize metal appliance frames, plumbing fixtures, and metal structural elements.

How Can You Spot Unpermitted Electrical Work and DIY Wiring Mistakes?

Unpermitted electrical work is the single most common trigger for code citations during Florida real estate sales and municipal inspections. Under Florida Statutes §553.84, property owners can face civil liability for maintaining non-compliant building systems that result in injury or property damage. Identifying unauthorized DIY additions before an official inspector arrives is essential.

Illegal Wiring Practices and Cable Routing Errors

When unqualified individuals add outlets, light fixtures, or subpanels, they frequently skip critical structural protections:

• Improper Wire Sizing: Matching wire gauge to circuit breaker amperage is basic electrical safety. Installing 14 AWG wire (rated for 15 amps) on a 20-amp circuit breaker creates a severe fire hazard because the wire will overheat long before the breaker trips.
• Missing Protective Nail Plates: Non-metallic sheathed (NM) cable passing through wood framing studs must sit at least 1 ¼ inches from the edge of the stud. If the hole is drilled closer to the edge, a hardened steel nail plate must be installed to protect the cable from drywall screws and picture-hanging nails.
• Cable Support Intervals: Under the FBC and NEC, NM cable must be secured with approved staples within 12 inches of entering an outlet box or panel enclosure, and supported at maximum intervals of 4.5 feet along structural runs. Unsupported cables hanging across drop ceilings or attic joists violate code and stress connection terminals.

For technical specifications on residential wiring methods, refer to the 2023 Advanced Electrical Provisions for Builders.

Improper Outdoor Covers and Weatherproofing Violations

Florida’s torrential downpours require specialized outdoor electrical enclosures. Using incorrect covers outside is an immediate code red flag:

• Damp Locations vs. Wet Locations: A damp location (such as a fully covered front porch or screened patio) requires a weatherproof cover that seals when the cover is closed. A wet location (an outdoor wall or pool deck exposed to direct rainfall) requires a listed ‘extra-duty’ in-use cover (often called a bubble cover) that remains completely weatherproof even when an appliance cord is plugged in.
• Corroded Enclosures: Installing interior-rated metallic boxes, unsealed conduit, or non-weather-resistant receptacles outdoors allows salt-laden moisture to seep into live terminals, causing premature corrosion, short circuits, and ground faults.

Why Are Florida Homes Uniquely Prone to Severe Electrical Code Violations?

To understand why Florida properties suffer higher rates of electrical non-compliance than homes in other regions, we must evaluate how local environmental factors interact with residential wiring over time.

Subtropical Climate Stressors: Lightning, Severe Storms, and Extreme Heat

Florida’s harsh climate works against electrical infrastructure year-round. Unconditioned attics routinely reach 140°F or higher during summer months. Over 20 to 30 years, this intense heat bakes non-metallic cable sheathing, causing the plastic insulation to become brittle and crack when disturbed.

In attached garages, extreme daily temperature swings cause terminal screws on circuit breakers to back out over time. Loose connections increase electrical resistance, creating localized hotspots that melt insulation and ignite surrounding panel components.

Legacy Wiring Systems and Renovation Permit Triggers

Florida experienced massive housing booms during the 1960s and 1970s. As a result, many older residential neighborhoods contain legacy wiring systems that present modern compliance challenges:

• Pre-1973 Single-Strand Aluminum Wiring: Due to copper shortages during the Vietnam War era, builders widely used single-strand aluminum branch wiring. Aluminum expands and contracts far more than copper, leading to loose connections, oxidation, and elevated fire risks at standard switches and receptacles. Remediating aluminum wiring requires approved CO/ALR devices or professional pigtailing with copper using specialized connectors.
• Pre-1940s Knob-and-Tube Wiring: Found in historic districts across Florida, knob-and-tube lacks a dedicated grounding conductor and cannot handle modern appliance loads.
• Renovation Permit Triggers: Florida Building Code standards specify that when you pull a permit for a major renovation — such as a kitchen or bath remodel — the work scope often forces adjacent existing branch circuits to be upgraded to meet current AFCI and GFCI protection requirements.

When planning structural updates or additions, review our insights on The Importance of Electrical Capacity Planning for Growing Homes and Businesses.

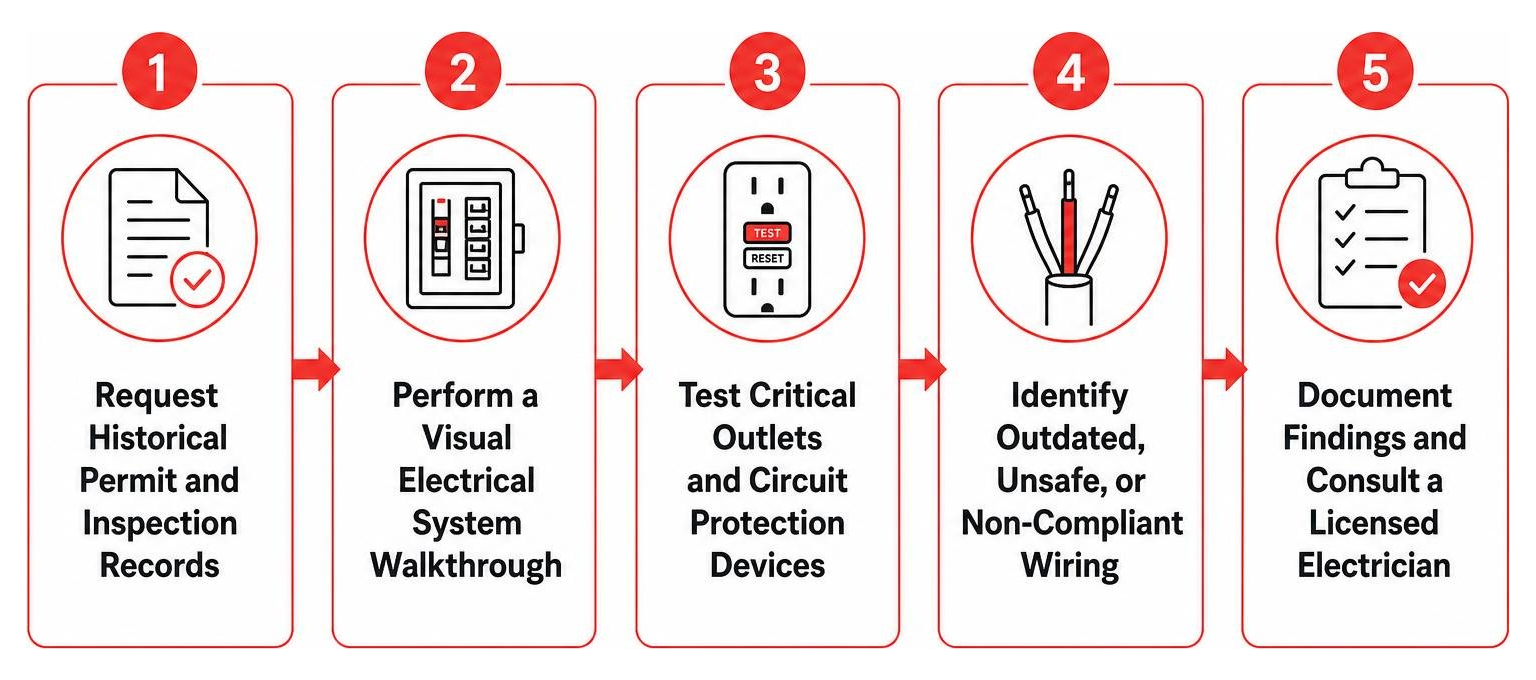

What Are the 5 Ways to Identify Electrical Violations in Your Home?

Whether you are preparing to list a home on the market, buying a new property, or managing an investment portfolio, evaluating electrical compliance requires a systematic approach. Below is our professional 5-step checklist for spotting potential code violations.

Step 1: Request Historical County Permit and Inspection Records

Before opening a panel door or pulling out a tester, examine your property’s public records.

• Contact your local municipal or county building department (or access their online permit portal).
• Cross-reference the official permit history against physical improvements on the property.
• Look specifically for unpermitted room additions, converted garages, outdoor kitchen wiring, swimming pool installations, or main panel service upgrades.
• If major electrical modifications exist without record of a final closed permit, those systems were likely installed without municipal plan review or field inspection, making code violations almost guaranteed.

Step 2: Perform a Visual Inspection of the Electrical Panel and Clearances

Open the outer door of your main service panel (without removing the protective dead-front cover) to conduct a visual assessment:

1. Check the Brand: Look at the manufacturer label inside the door. If you see Federal Pacific Electric (FPE), Zinsco, Sylvania, or Challenger, consult a licensed electrical contractor immediately.
2. Review the Directory: Ensure every breaker is clearly and permanently labeled (e.g., “Kitchen Countertop Receptacles” rather than generic notes like “Outlets”). Unlabeled breakers violate NEC requirements.
3. Inspect for Physical Defects: Check for signs of rust along the bottom of the enclosure, moisture drops, charred plastic, or burn marks near breaker switches.
4. Verify Working Space: Ensure a clear floor area 36 inches deep by 30 inches wide is maintained in front of the panel. Remove all storage bins, shelving, or outdoor equipment blocking access.

Step 3: Test All GFCI/AFCI Receptacles and Measure Proximity to Water

Inspect every room where moisture is present:

• Locate all outlets in bathrooms, kitchens, garages, laundry rooms, and outdoor walls.
• Press the “Test” button on each GFCI receptacle. The button should trip with a distinct snap, cutting power to the outlet face (and any downstream outlets on that circuit). Press “Reset” to restore power.
• If pressing “Test” fails to trip the mechanism, or if power remains active at the outlet face, the device has failed internal self-tests or is wired incorrectly.
• Measure the distance from receptacle faceplates to the inside edge of sink basins, wet bars, and laundry tubs. Any standard 125V outlet located within 6 feet of a water source must have GFCI protection.

Step 4: Examine Outdoor Electrical Installations, Pool Wiring, and Weatherheads

Walk around the exterior perimeter of your home:

• Check Outdoor Receptacle Covers: Ensure all receptacles exposed to rain feature heavy-duty plastic or metallic ‘extra-duty’ in-use covers that close fully over attached power cords.
• Inspect Service Entrance Equipment: Look up at the overhead service mast and weatherhead where utility lines connect to your home. Check for loose conduit straps, cracked insulation on service cables, or rust on the meter socket enclosure.
• Evaluate Pool and Spa Equipment (NEC Article 680): Ensure pool pump motors, metal ladders, underwater lighting fixtures, and metal fence sections within 5 feet of the pool interior edge are properly connected to an equipotential bonding grid using solid copper conductors (minimum 8 AWG).

Step 5: Order a Comprehensive Master Electrician Safety Inspection

While visual checks uncover surface-level issues, concealed hazards require professional diagnostic tools. A standard insurance 4-point inspection is brief and only evaluates basic panel brand, service size, and visible wiring types.

A comprehensive code evaluation performed by a licensed contractor like Performance Electrical Contracting Inc. utilizes infrared thermal imaging to identify hidden electrical hotspots, digital ground-resistance meters to test earthing electrodes, and circuit analyzers to detect floating neutrals, voltage drop, and improper grounding loops behind walls.

What Are the Financial and Legal Penalties for Florida Code Violations?

Ignoring electrical code compliance in Florida carries steep statutory and administrative penalties. Local building departments, code enforcement boards, and insurance underwriters possess sweeping legal authority to enforce compliance.

Code Enforcement Fines, Stop-Work Orders, and Statutory Liens

Under Florida Statute §162.09, municipal code enforcement boards hold the authority to levy significant daily fines against non-compliant property owners:

• Initial Violations: Up to $250 per day for first-time citations.
• Repeat Violations: Up to $500 per day for repeat offenses.
• Irreparable/Irreversible Harm: Fines up to $5,000 per violation for hazardous conditions that pose immediate public safety threats.
• Large Municipalities: In jurisdictions with populations exceeding 50,000, fines can legally reach up to $15,000 per violation per day.

Under Florida Building Code §110.7, local inspectors who discover active unpermitted electrical work will issue an immediate Stop-Work Order. Continuing work after a stop-work order is posted can lead to misdemeanor criminal charges. Furthermore, accrued code enforcement fines are recorded in county public records as statutory tax liens against the property, clouding the title and preventing any refinance or sale until paid in full.

Real Estate Closing Delays, Insurance Cancellations, and Licensing Penalties

Beyond municipal fines, code violations impact property transactions and insurance eligibility:

• Insurance Non-Renewal & Denial: Following major storm seasons, Florida home insurance carriers scrutinize 4-point inspection reports. Uncertified FPE/Zinsco panels, double-tapped breakers, single-strand aluminum wiring, or missing GFCI protection often result in immediate policy cancellation or coverage denial until professional remediation is completed.
• Real Estate Disclosure Liability: Under Florida civil contract law (such as the Johnson v. Davis precedent), sellers must disclose known latent defects that materially affect property value. Concealing unpermitted electrical work exposes sellers to post-closing lawsuits.
• Contractor Licensing Disciplines: Under Florida Statutes Chapter 489, performing electrical contracting without a valid license or pulling owner-builder permits to execute work for commercial gain can result in Florida Construction Industry Licensing Board (CILB) fines reaching up to $10,000 per violation.

To understand the regulatory standards enforced across Florida, read about The Industry Standards That Power Commercial Electrical Installation.

Frequently Asked Questions About Florida Electrical Code Violations

Can a homeowner sell a Florida property with unresolved electrical code violations?

Yes, a property can technically be sold with code violations, but doing so creates significant legal and financial hurdles. Active code enforcement violations and municipal liens are material facts that must be disclosed in writing during real estate contract negotiations, and any outstanding financial liens must be cleared or escrowed before closing.

In addition, buyer mortgage lenders typically refuse loan origination, and Florida property insurance carriers will deny mandatory coverage if severe electrical hazards (such as Federal Pacific panels or active aluminum wiring) are identified on 4-point inspection reports.

Are older Florida homes required to retroactively meet current electrical codes?

No. Under the Florida Building Code and NEC Article 80, existing residential electrical installations that met code when originally permitted are generally grandfathered in and do not require retroactive upgrades simply because a new code edition is published.

However, grandfathered status is voided if the local building official determines the existing system represents an immediate life-safety hazard, or if new permitted remodeling work (such as a kitchen or room addition) extends existing branch circuits, triggering mandatory AFCI/GFCI retrofits across adjacent wiring under current FBC guidelines.

What is the difference between a 4-point inspection and a code compliance inspection?

A 4-point inspection is a narrow, surface-level assessment required by insurance carriers for Florida homes typically 20 years or older. It evaluates four basic systems (roof, plumbing, HVAC, and electrical) to establish general insurer risk, focusing primarily on panel brand, service amperage, and visible wiring types.

A code compliance inspection performed by a licensed master electrician is a deep diagnostic evaluation. It tests entire distribution networks, panel thermal signatures, grounding electrode resistance, box fill calculations, device polarity, and precise NEC/FBC section compliance across all interior and exterior circuits.

What Are the Final Steps to Resolve Electrical Violations in Florida?

Resolving electrical code violations requires a methodical approach to ensure occupant safety, legal protection, and long-term asset value:

1. Obtain Public Permit Histories: Always verify past work before starting new projects.
2. Perform Routine Visual and Device Checks: Test GFCI and AFCI outlets monthly, clear panel access paths, and look for signs of corrosion on outdoor equipment.
3. Hire Licensed Professionals: Never rely on unpermitted DIY work or uncertified contractors for electrical repairs.

At Performance Electrical Contracting Inc., we deliver expert electrical installation, maintenance, code compliance evaluations, and complete system remediation for residential, commercial, multifamily, and industrial properties across Jacksonville and the Southeast U.S. Our team works directly with property owners, general contractors, and local building departments to ensure every project is completed safely, legally, on time, and within budget.

If you suspect code violations, face insurance cancellation notices, or require a comprehensive safety evaluation, contact Performance Electrical Contracting Inc. today to schedule a professional inspection with our certified team.

To choose the right arc flash mitigation solutions, you first have to understand what happens during an arc flash event. When an arcing fault occurs, current flows through the air between ungrounded phase conductors, or between a phase conductor and ground. This ionized gas path turns the surrounding atmosphere into a conducting plasma channel, releasing massive thermal energy in microseconds.

Thermal radiation from an electrical arc can reach temperatures exceeding 35,000°F—hotter than the surface of the sun. This intense thermal output vaporizes copper and aluminum busbars instantly. The metallic vapor expands to thousands of times its original volume, generating a mechanical blast pressure wave capable of throwing workers across rooms, rupturing switchgear cabinets, and showering work areas with molten shrapnel.

Causes and Impacts of Arc Flash Events

Arc flashes rarely happen without a trigger. Dust accumulation, moisture buildup, foreign objects (like a dropped hand tool), rodent infestation, or insulation breakdown can bridges phase conductors. Human error during maintenance or troubleshooting remains one of the primary triggers.

In low-voltage industrial systems—particularly 480V installations—arcing faults present a counterintuitive danger. Because air impedance restricts arcing fault current, the current level often drops to 45–50% of the maximum 3-phase bolted fault current. Standard inverse time-current curve (TCC) protective devices like circuit breakers or fuses may interpret this lower current as a standard overload rather than a severe fault.

As a result, clearing times balloon from milliseconds into full seconds. A 480V fault with lower arcing current can yield higher total incident energy than a higher-voltage fault that clears instantly. Watching out for 5 Warning Signs Your Commercial Electrical System Needs Immediate Attention helps identify deteriorating equipment before catastrophic failure occurs.

Primary Goals of Hazard Reduction

The primary objective of implementing arc flash mitigation solutions is to reduce the incident energy—measured in calories per square centimeter (cal/cm²)—at a specific working distance.

Targeting incident energy levels below 1.2 cal/cm² keeps potential thermal exposure at or below the threshold for second-degree burns on bare skin. Lowering incident energy yields several key operational benefits:

• PPE Category Reduction: Workers can operate in lightweight, standard flame-resistant (FR) daily workwear rather than bulky Category 4 arc flash suits (40 cal/cm² rated), improving mobility and reducing heat stress.
• Faster Clearing Times: Shortening the fault clearing time directly cuts the energy transferred into electrical enclosures.
• Minimized Operational Downtime: Lower incident energy limits damage to the arc footpoint, allowing facilities to restore power within hours rather than waiting weeks for total switchgear replacement.
• Enhanced Business Continuity: Protecting electrical assets safeguards ongoing plant operations and eliminates revenue loss caused by unscheduled outages.

The Three Primary Categories of Arc Flash Mitigation Solutions

A balanced safety program relies on a hierarchy of risk controls. The three primary categories of mitigation include modifying work practices, retrofitting existing controls, and installing modern equipment.

Implementing Work Practice Changes as Arc Flash Mitigation Solutions

Administrative controls and modified work practices represent the first line of defense:

1. De-Energized Work Policies: Whenever possible, establish an electrically safe work condition prior to starting work.
2. Sequence of Operation Protocols: Mandate remote switching procedures so technicians avoid standing in front of energized panels during breaker racking or switching.
3. Enhanced Lockout/Tagout (LOTO): Integrate mandatory multi-step voltage verification into routine maintenance routines.
4. Targeted Safety Training: Conduct safety awareness training for both qualified electrical personnel and non-electrical facility employees.

Retrofitting Existing Equipment with Engineering Controls

When de-energizing is impossible, retrofitting legacy distribution gear with engineering controls cuts clearing times:

• Maintenance Switches: Installing an Arcflash reduction maintenance system gives technicians a dedicated, instantaneous trip circuit that bypasses normal selective delay during active servicing. This reduces fault clearing time by approximately 20 ms compared to standard digital instantaneous protection.
• Zone Selective Interlocking (ZSI): Hardwired or networked communication between protective trip units lets upstream breakers bypass their intentional time delay when a fault occurs directly on their bus zone, clearing the fault rapidly.
• Upgrading Legacy Components: Replacing electromechanical relays with digital microprocessor relays accelerates fault processing. If your building features outdated panels, review Why You Should Upgrade Old Electrical Outlets and Switches to improve overall system safety.

Installing Advanced New Switchgear and Equipment

For new construction or complete equipment overhauls, installing modern arc-resistant switchgear offers built-in structural containment. Tested under standards like IEEE C37.20.7, arc-resistant gear features reinforced enclosures, ruggedized doors, pressure-relief vents, and internal compartmentalization designed to redirect explosive blast gases upward and away from surrounding technicians.

Active Arc Detection, Quenching, and Clearing Systems

Active mitigation technologies detect the physical characteristics of an arc fault as it forms and take action to clear or extinguish it in milliseconds.

Optical and Light-Sensing Relays

Optical arc protection relies on high-speed light sensors installed inside switchgear compartments. These point light sensors or flexible continuous fiber-optic loops sense the intense flash emitted during the initiation phase of an arcing fault.

Systems like the Arc Guard System – TVOC-2 and CSU-2 transmit an optical signal to a central relay in under 1 ms. Integrating these relays with ultra-fast circuit breakers yields total arc fault clearing times around 50 ms.

Other systems, such as Varixx ZYGGOT® ARC V5F technology, target ultraviolet (UV) radiation released before visible light appears, achieving action times under 0.3 ms (300 µs).

To prevent nuisance trips caused by camera flashes, sunlight, or ambient lighting, optical relays use dual-conditioning trip logic. The relay requires both light detection and an overcurrent threshold trigger from current transformers before issuing a trip command.

Arc Quenching Switchgear and Active Pyrotechnic Mitigation

Arc quenching switchgear takes active mitigation a step further by neutralizing the arc fault without waiting for an upstream circuit breaker to open.

When optical sensors detect a fault, an active quenching system—such as the Magnum DS Arc Quenching Switchgear | Eaton—fires a pyrotechnic actuator or high-speed drive. This mechanism closes a low-impedance copper bus pathway, creating a controlled 3-phase short circuit upstream of the fault.

By transferring the energy into this sealed internal shorting path, the arc fault loses its voltage driving force and extinguishes in under 4 ms. Systems like the ARCON Arc Fault Protection System | Overview | Eaton achieve full arc mitigation in 2 ms or less, keeping incident energy below 1.2 cal/cm².

Active Technologies vs. Arc-Resistant Equipment

Passive Safety Hardware and Engineering Controls

Passive engineering controls reduce worker exposure by creating physical distance or eliminating open-door maintenance tasks.

Remote Racking and Thermal Inspection Hardware

Distance remains one of the simplest ways to protect personnel. Because incident energy drops with the square of the distance, keeping operators outside the arc flash boundary significantly lowers risk.

• Remote Racking Systems: Motorized, remotely controlled actuators attach to circuit breakers, allowing technicians to rack low- or medium-voltage breakers in or out from behind a safety barrier outside the arc flash boundary.
• Remote Switch Actuators: Portable battery-powered actuators mount externally over switch handles via magnetic mounts, letting personnel operate switches from up to 30 feet away.
• Infrared (IR) Windows: Permanently installed transmissive IR windows let thermographers perform routine thermal imaging scans on energized busbars without opening switchgear cabinet doors, removing exposure to live conductors.

Evaluating Permanent Devices as Arc Flash Mitigation Solutions

Permanent Electrical Safety Devices (PESDs) enhance standard LOTO procedures. High-impedance voltage verification test ports and permanently mounted LED voltage indicators allow technicians to verify the presence or absence of voltage using a multimeter without opening enclosure doors. Combining PESDs into daily LOTO routines reduces open-cabinet exposure. As electrical loads expand, reviewing The Importance of Electrical Capacity Planning for Growing Homes and Businesses ensures your service equipment can support modern safety retrofits.

Compliance Standards, Risk Assessments, and System Coordination

Implementing arc flash mitigation solutions requires adherence to established safety standards and engineering frameworks:

• NFPA 70E: Standard for Electrical Safety in the Workplace (mandates risk assessments, LOTO procedures, safe boundaries, and PPE requirements).
• IEEE 1584: Guide for Performing Arc-Flash Hazard Calculations (provides the mathematical equations used to calculate arcing current, incident energy, and boundaries).
• NEC 240.87: Arc Energy Reduction requirements for circuit breakers rated or adjustable to 1200A or higher.

Conducting Arc Flash Analysis and Equipment Labeling

An arc flash study begins with an engineering analysis of the facility’s power distribution network. Engineers map short-circuit currents, protective device clearing times, and device settings to calculate incident energy levels across switchboards, panels, and motor control centers.

NFPA 70E mandates updating the arc flash analysis at least every five years, or whenever major facility modifications occur. The study yields site-specific labels applied directly to electrical equipment, displaying:

1. Calculated Incident Energy (in cal/cm²)
2. Arc Flash Protection Boundary distance
3. Nominal System Voltage
4. Required Minimum PPE Category

If you are unsure whether your electrical infrastructure meets current standards, consider How to Tell When Your Home Needs an Electrical Safety Inspection to establish an accurate baseline.

Balancing Arc Flash Mitigation with System Selective Coordination

A common engineering challenge when installing fast-acting mitigation devices is preserving selective coordination. Selective coordination ensures that during a downstream fault, only the immediate protective device clears the fault, preventing upstream breakers from tripping and shutting down entire facilities.

(In a coordinated system, ONLY the Branch Breaker trips, keeping the rest of the facility powered.)

Setting circuit breakers to trip instantly shortens clearing times, but it can compromise selective coordination. Systems like maintenance mode switches solve this by letting personnel activate fast-tripping modes only during active maintenance window exposures. Once work is complete, technicians disengage the switch, restoring standard selective coordination for normal operations.

Frequently Asked Questions about Arc Flash Mitigation

What is the primary difference between active and passive arc flash mitigation?

Active mitigation relies on sensors and controls (like light relays or pyrotechnic quenching units) that detect a fault and take immediate action to clear or extinguish it in milliseconds. Passive mitigation uses physical structures (like arc-resistant enclosures, remote racking tools, or IR windows) that contain blast energy or keep personnel at a safe distance without altering fault duration.

How often must a facility update its arc flash study under NFPA 70E?

NFPA 70E requires reviewing and updating an arc flash study at least every five years. However, any significant modification to the electrical system—such as adding major transformer capacity, installing large motors, or reconfiguring protective relays—requires an immediate update to verify that label data remains accurate.

Why can lower arcing current in 480V systems result in higher incident energy?

In 480V low-voltage systems, arcing fault current drops to roughly 45–50% of the calculated 3-phase bolted fault current due to arc path impedance. Because standard overcurrent protective devices use inverse time-current curves (TCC), this reduced current level can cause protective devices to take significantly longer to trip. The extended duration dramatically increases total incident energy compared to higher-current faults that trip instantaneously.

Modernize Your Electrical Safety Strategy Today

Selecting and implementing the right arc flash mitigation solutions requires balancing personnel protection, system reliability, and regulatory compliance. At Performance Electrical Contracting Inc., our experienced team delivers end-to-end commercial electrical services across Jacksonville, FL, and the Southeast U.S. From risk assessments and infrastructure upgrades to active protection retrofits, we deliver value-driven solutions that keep your systems operating safely.

Ready to lower incident energy levels, protect your workforce, and streamline compliance? Explore our comprehensive Commercial Electrical Contracting Services today to partner with our team on your next safety upgrade.
